Best 5 AI Gateways for LLM Cost Optimization in 2026

Originally published May 10, 2026. Updated May 16, 2026.

A growth-stage SaaS team deployed a customer-support copilot on a Friday and woke up to a $48,000 OpenAI bill by Sunday morning, because the gateway routed every request to GPT-4o, missed 42 percent of near-duplicate prompts that should have hit a semantic cache, and never fired a per-virtual-key budget alert. This guide compares the five AI gateways production teams should choose between in 2026 for LLM cost optimization, scored on the five-layer cost stack, observability surface, and the active 2026 trust cohort with primary sources.

TL;DR: 5 Gateways Scored on the Five-Layer Cost Stack and the 2026 Trust Cohort

Future AGI Agent Command Center is the strongest single pick for LLM cost optimization in 2026 because it bundles an OpenAI-compatible drop-in, per-virtual-key budgets, exact plus semantic caching, OpenTelemetry-native cost telemetry, and 18+ built-in guardrail scanners in one Apache-2.0 Go binary you can self-host. Provider routing alone no longer cuts the bill; the four axes that separate a 2026 cost-aware gateway from a 2024 LLM proxy are five-layer stack depth, per-tenant budget enforcement on the routed path, OTel-native cost attribution by span_id, and acquisition independence inside the 2026 trust cohort.

The 5 Cost-Optimization Gateways at a Glance

The five cover every cost-optimization shape teams actually ship in 2026: an Apache-2.0 open-source platform with the five-layer stack in one binary (Future AGI), a mature managed dashboard with acquisition pending (Portkey), a Python proxy under remediation (LiteLLM), a per-token-markup directory (OpenRouter), and a Go throughput leader from Maxim (Bifrost).

Helicone is intentionally not in the ranked list. As of March 3, 2026 it has been acquired by Mintlify and the public roadmap has shifted toward a documentation-platform-first stance. Teams already on Helicone should treat it as a planned migration, not a continued procurement, and the migration cohort is covered in detail below.

How Did We Score AI Gateways for Cost Optimization?

We used the Future AGI Production Gateway Scorecard, tuned for cost-optimization procurement. Most 2026 cost listicles score on semantic caching and stop there.

Maxim’s seven-URL cost cluster caps its comparison tables at five or six columns; TrueFoundry’s “Definitive Guide” table is four columns; Zuplo uses ten generic criteria; TokenMix ships no matrix at all.

The scorecard below runs seven dimensions across sixteen comparison columns, including the four that decide whether the gateway actually cuts spend in production.

Dimensions 3, 4, 6, and 7 are the four that decide whether the gateway actually saves money in production. The right priority depends on the buyer profile (OpenTelemetry-first engineering versus multi-tenant SaaS versus Python ML platform versus regulated workload).

The 16-Dimension Capability Matrix the Cost SERP Is Missing

Across the five gateways below, Future AGI Agent Command Center leads on combined provider breadth, guardrail depth, observability, and cost governance. Bifrost wins on raw throughput. Portkey wins on out-of-the-box dashboard polish. LiteLLM wins on Python-native ergonomics. OpenRouter wins on lowest setup friction.

The shape of the matrix is the shape your buying decision will be: no gateway wins every column, and the four columns that matter most for cost (semantic caching, per-virtual-key budgets, observability, and license plus acquisition risk) are where the field separates.

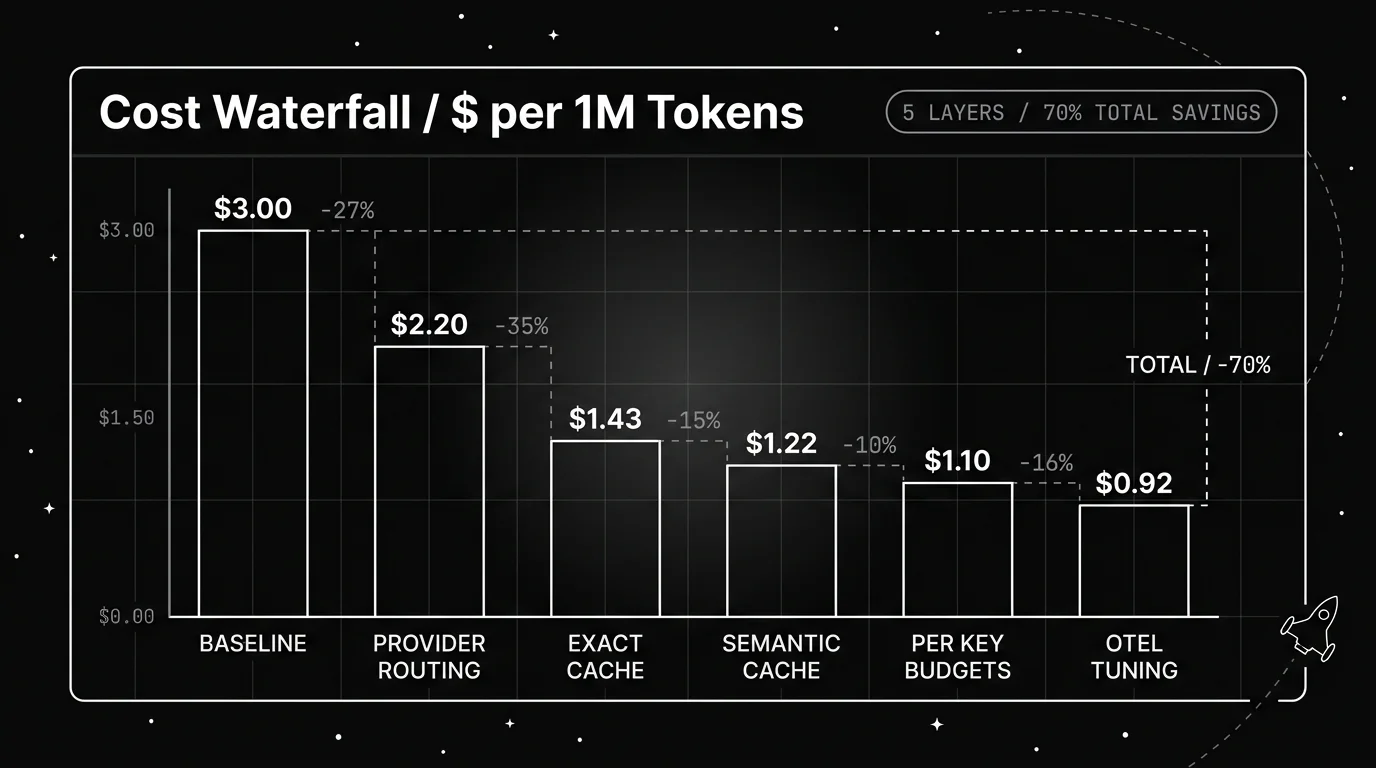

How AI Gateways Actually Cut LLM Cost in Production

AI gateways cut LLM cost across five layers (provider cost routing, exact caching, semantic caching, per-virtual-key budget hierarchies, and OpenTelemetry-native cost telemetry), and a real production cost win comes from stacking three or four of them, not from optimizing one.

Production teams typically see 40 to 70 percent total spend reduction once routing, caching, budgets, and OTel cost telemetry are wired together at the same network hop. The breakdown:

1. Provider cost routing. Route to the cheapest provider that meets a quality floor. Most useful when you have parity providers (GPT-4o versus Claude Sonnet 4.6 versus Gemini 2.5 Pro for short-form classification). Saves 20 to 60 percent on the routed slice if quality holds; pair with ai-evaluation (Apache 2.0) to short-circuit drift. FAGI ships a 50+ built-in rubric catalog across task completion, faithfulness, tool-use, structured-output, hallucination, and groundedness, plus unlimited custom evaluators authored end-to-end by an in-product agent that uses tool calling on your code, plus self-improving evaluators that learn from live production traces, plus FAGI’s proprietary classifier model family that scores any rubric at very low cost-per-token (Galileo Luna-2 cost economics, rubric-flexible). Catalog is the floor, not the ceiling; every score feeds agent-opt so a regression on a held-out trace fires a fallback rule on the next request at the same network hop.
2. Exact caching. Hash the request (model, messages, parameters) and return the cached response on a byte-for-byte match. Free on hit. Most effective for deterministic tooling prompts: agent inner loops, status checks, retry-on-error templates. Hit rates of 5 to 20 percent in customer-facing apps, 30 to 60 percent in agent inner loops.
3. Semantic caching. Embed the prompt and match on cosine similarity above a threshold. Catches paraphrased queries the exact cache misses. Hit rates of 20 to 60 percent on customer-support workloads, 10 to 25 percent on conversational copilots. Threshold tuning matters; too loose and false positives degrade quality, too strict and the cache rarely hits.
4. Per-key, per-tenant budget hierarchy. Issue one virtual key per customer or feature; attach a budget and a rate limit; the gateway hard-cuts at threshold. The single biggest cost-runaway prevention. Without it, a misbehaving agent loop is a billing incident, not a budget alert.
5. OpenTelemetry-native cost telemetry. Emit cost, tokens, and cache_hit as span attributes; emit them as Prometheus metrics with provider, model, and tenant_id labels. Without this, finance dashboards lag the gateway by a day, and unit economics get debated quarterly instead of in real time.

A gateway that ships layers 1, 2, and 3 but skips 4 and 5 is good for a demo and bad for production. The five tool reviews below are scored against all five layers, plus the four scorecard dimensions that decide whether the gateway actually cuts spend.

Future AGI Agent Command Center: Best Overall for LLM Cost Optimization

Future AGI Agent Command Center tops the 2026 cost-optimization list because it bundles every layer of the five-layer cost stack at the same network hop in one Apache-2.0 Go binary you can self-host.

It loses on out-of-the-box dashboard polish to Portkey and on raw single-dimension Go throughput to Bifrost; for buyers whose binding constraint is OpenTelemetry-native cost telemetry plus per-virtual-key budgets in an existing observability stack, the combined surface still puts it first.

Every other gateway forces you to wire two or three of these layers together; Agent Command Center attaches them at the same network hop. The combined surface is documented in the Agent Command Center docs and the source ships at the Future AGI GitHub repo.

Best for. Engineering teams already running OpenTelemetry that want OpenAI-compatible drop-in, fine-grained per-virtual-key budgets, exact plus semantic caching, and cost telemetry emitted into their existing observability stack, without rewriting OpenAI SDK code or operating a Python proxy.

Key strengths.

• OpenAI-compatible drop-in: change base_url to https://gateway.futureagi.com/v1, keep the existing OpenAI SDK code unchanged.
• 100+ providers behind a unified API (OpenAI, Anthropic, Google Gemini, AWS Bedrock, Azure OpenAI, Cohere, Groq, Together, Fireworks, Mistral, DeepInfra, Perplexity, Cerebras, xAI, OpenRouter, plus self-hosted via Ollama, vLLM, LM Studio, and any OpenAI-compatible server).
• Exact caching (in-memory or Redis) and semantic caching (in-memory, Qdrant, or Pinecone), with per-request override headers for force-refresh, TTL, and namespace, plus the standard Cache-Control: no-store opt-out.
• Per-key, per-virtual-key, per-model, and per-time-window budgets; rate limits; quotas; shadow experiments; webhooks on threshold; tag-based custom properties for tenant-level enforcement.
• OpenTelemetry-native cost telemetry: per-request cost and token attribution exported as OTLP traces with span_id linking from gateway trace to eval result, plus Prometheus metrics on /-/metrics for Grafana dashboards. traceAI instruments 35+ frameworks OpenInference-natively, and Error Feed. FAGI’s “Sentry for AI agents”, turns those traces into named issues with zero config, auto-clusters 50 related failures into one issue, and auto-writes a root cause plus a quick fix plus a long-term recommendation per issue so cost-runaway clusters get triaged like exceptions instead of buried in dashboards.
• The Future AGI Protect model family for inline guardrails at the gateway layer, ~67 ms p50 text and ~109 ms p50 image (arXiv 2510.13351). Protect is FAGI’s own fine-tuned model family built on Google’s Gemma 3n with specialized adapters across four safety dimensions (content moderation, bias detection, security/prompt-injection, data privacy/PII), natively multi-modal across text, image, and audio, a model family, not a plugin chain. A dedicated MCP Security scanner sits alongside and matters after the April 2026 OX Security disclosure on the MCP STDIO transport class.
• Apache 2.0; single Go binary; Docker, Kubernetes, AWS, GCP, Azure, on-prem, air-gapped, cloud at gateway.futureagi.com/v1.

Limitations.

• Full execution tracing for agents is currently an “In Progress” roadmap item on the public roadmap in the Future AGI GitHub repo and is rolling out alongside the existing gateway-side OpenTelemetry trace export.

from openai import OpenAI

client = OpenAI(
    api_key="$FAGI_API_KEY",
    base_url="https://gateway.futureagi.com/v1",
)

# Existing OpenAI SDK code unchanged from here.
# Per-VK budget, exact + semantic cache, and OTel cost telemetry
# all apply at the same network hop without SDK changes.
response = client.chat.completions.create(
    model="anthropic/claude-3-5-sonnet",
    messages=[{"role": "user", "content": "Summarise this support ticket."}],
)

Use case fit. Strong for OpenTelemetry-first engineering teams, multi-tenant SaaS, fintech with per-customer budget enforcement, and platform teams that want eval plus tracing plus gateway in one Apache-2.0 platform with hybrid local and cloud deployment. Less optimal for teams that want a fully managed dashboard before writing any infrastructure code.

Pricing and deployment. Apache 2.0 single Go binary; cloud-hosted endpoint at https://gateway.futureagi.com/v1 or self-host (Docker, Kubernetes, air-gapped).

Verdict. The strongest single pick when the 2026 cost story is “we want per-VK budgets, semantic caching, and cost telemetry in our existing OpenTelemetry stack, in one Apache-2.0 binary, without rewriting OpenAI SDK calls or operating a Python proxy.”

Portkey: Best for Managed Cost Dashboard Out of the Box

Portkey is the strongest pick when you want exact plus semantic caching plus a four-tier budget hierarchy plus a managed cost dashboard out of the box. It’s what most production teams reach for when “we need spend control next week” is the brief, and it has the largest adapter library on the cost path.

Best for. Multi-tenant SaaS or internal multi-product platforms that need fine-grained per-customer budgets, a mature semantic cache, and a usable cost dashboard without writing a custom exporter.

Key strengths.

• Exact plus semantic caching with TTL and similarity-threshold tuning out of the box.
• Per-key, per-virtual-key, per-model, and per-time-window budgets; the most fine-grained native-dashboard hierarchy on this list.
• Large adapter library (250+ providers, including private OSS deployments).
• Usable native dashboard for cost attribution by tenant, feature, and route, without writing a custom exporter.
• Open-source gateway core (github.com/Portkey-AI/gateway); production teams self-host the gateway and run the control plane in Portkey cloud.

Limitations.

• Palo Alto Networks announced intent to acquire Portkey on April 30, 2026; the press release says the deal is expected to close in PANW fiscal Q4 2026 and that Portkey will become the AI Gateway for Prisma AIRS. Verify standalone-product continuity before signing a multi-year contract.
• Observability is dashboard-first; the OpenTelemetry export exists but is less first-class than the native dashboard, so OTel-first stacks end up duplicating cost telemetry.
• The control plane is closed; check whether the open-source core covers air-gapped requirements.

Use case fit. Strong for multi-tenant SaaS, fintech with per-customer cost attribution, and platform teams running multiple AI products. Less optimal for teams that want their cost data flowing into an existing OpenTelemetry collector and Grafana stack as a first-class output.

Pricing and deployment. Open-source core (self-hosted) plus commercial cloud control plane; enterprise tiers.

Verdict. The most mature cache plus budget hierarchy plus managed dashboard in 2026. Choose with eyes open on the Palo Alto integration; the next twelve months will tell whether the standalone gateway product survives the merge.

LiteLLM: Best for Python-First Teams Post-CVE

LiteLLM is the Python-first proxy that broke open the multi-provider unified-API category. It exposes 100+ providers behind OpenAI-compatible endpoints and powers a long tail of internal gateways. After the March 24, 2026 supply-chain incident the answer is “yes, with commit pinning or upgrade past 1.83.7.”

Best for. Python-first teams that already deploy a FastAPI or uvicorn surface, want broad provider coverage, and are willing to pin commit hashes (or upgrade past 1.83.7) and hold their own upstream provider DPA.

Key strengths.

• Broadest provider coverage of any single project on this list (100+ providers).
• MIT (the enterprise dir is licensed separately); trivial to fork or audit.
• Virtual keys with per-key budgets; budget alerts.
• Native fit with Python observability stacks (Prometheus exporter, OpenTelemetry middleware).
• Active maintainer community; easy to extend with custom adapters.

Limitations.

• March 24, 2026 PyPI supply-chain compromise. Versions 1.82.7 and 1.82.8 were published by an attacker who had taken over the maintainer’s PyPI token. The compromised package exfiltrated SSH keys, cloud credentials, and Kubernetes configs to an attacker-controlled endpoint, per the Datadog Security Labs writeup of the TeamPCP campaign. Pin commit hashes, scan for affected versions in the dependency tree, rotate any credentials touched by an affected install, and upgrade past 1.83.7.
• Python runtime; materially slower throughput than Go-binary alternatives at high concurrency.
• Semantic caching exists but is less mature than Portkey’s; tuning is more manual.

Use case fit. Strong for Python-first teams, ML platform teams that already manage Python services, and teams whose buying constraint is broad provider coverage in a fork-friendly license. Less optimal where throughput at over 10,000 req/s matters or where you’re pinned to a managed runtime that doesn’t allow commit-pinned dependencies.

Pricing and deployment. MIT (enterprise dir licensed separately); pip install. Enterprise cloud tier exists.

Verdict. Still the broadest provider coverage on the list, but the March 2026 supply-chain incident shifts it from “default pick” to “pin commits or upgrade past 1.83.7 and audit.” Pair with Sigstore verification and dependency-pinning enforcement.

OpenRouter: Best for Per-Token Economics Experiments

OpenRouter is the simplest entry on the list. One API key, one base URL, 200+ models from major providers, and a published per-token markup that some teams prefer to operating their own gateway. For cost specifically, OpenRouter answers “I want to A/B different models without writing routing code,” not “I want per-virtual-key budgets and semantic caching.”

Best for. Small teams or experiments that want unified access to 200+ models without operating any infrastructure; cost shoppers comparing per-token economics across providers.

Key strengths.

• Single API key, single base URL: minimal setup overhead.
• 200+ models including frontier and open weights, with transparent price comparison on the OpenRouter models directory.
• Drop-in routing across providers via an OpenAI-compatible surface.
• Useful for early-stage exploration and prompt-router experiments before committing to a self-hosted gateway.

Limitations.

• No semantic caching; no exact caching at the gateway layer.
• No per-virtual-key budget enforcement; cost control is provider-side only.
• Per-token markup means the gateway itself is a recurring line item; TCO crosses self-hosted alternatives at modest scale.
• Closed source; you’re betting on the OpenRouter team’s roadmap and uptime.

Use case fit. Strong for early-stage teams, prompt-routing experiments, and anyone comparing raw provider economics. Less optimal once production volume crosses the per-token-markup break-even or when per-tenant budget enforcement becomes load-bearing.

Pricing and deployment. Per-token markup; cloud only.

Verdict. The lowest-friction way to get unified provider access; not the right gateway when cost optimization itself is the brief.

Maxim Bifrost: Best for Go Throughput With MCP Code Mode

Maxim Bifrost is the Go-native gateway from Maxim, Apache 2.0, with vendor-published throughput at 5,000 RPS on t3.xlarge and a separate brand around MCP token reduction (“Code Mode”) for Claude Code workflows. It’s the gateway most often cited when throughput is the binding constraint.

Best for. Go shops whose binding constraint is gateway throughput at high concurrency, plus teams running Claude Code at scale that want to reduce MCP tool-call token cost.

Key strengths.

• Vendor-published benchmark showing roughly 11 µs mean gateway overhead at 5,000 RPS on t3.xlarge.
• Apache 2.0, single Go binary, drop-in deployment.
• Code Mode for MCP token reduction in Claude Code workflows (vendor-claimed up to 92.8 percent input-token reduction across 508 tools on 16 MCP servers).
• Active product velocity and aggressive content cadence keep the brand visible.

Limitations.

• Maxim self-ranks Bifrost #1 across its own gateway listicles with no published limitations, a trust signal worth weighing alongside the engineering claims.
• Observability and cost-attribution dashboards are thinner than Portkey’s; teams that need a finance-grade cost dashboard end up writing their own.
• Throughput claims are vendor-published; the independent reproduction load test is light. Treat as a baseline rather than a settled benchmark.

Use case fit. Strong for Go shops, high-throughput inference paths, and teams running Claude Code at scale. Less optimal where the cost story is centred on per-tenant budget enforcement and OpenTelemetry-native finance dashboards.

Pricing and deployment. Apache 2.0; Docker, Helm; commercial cloud tier exists via Maxim.

Verdict. Strong throughput numbers and real engineering credibility, but the “go faster” pitch isn’t the same as the “spend less” pitch. Choose Bifrost when throughput is the primary axis; choose elsewhere when per-tenant budget enforcement and span-level cost attribution are.

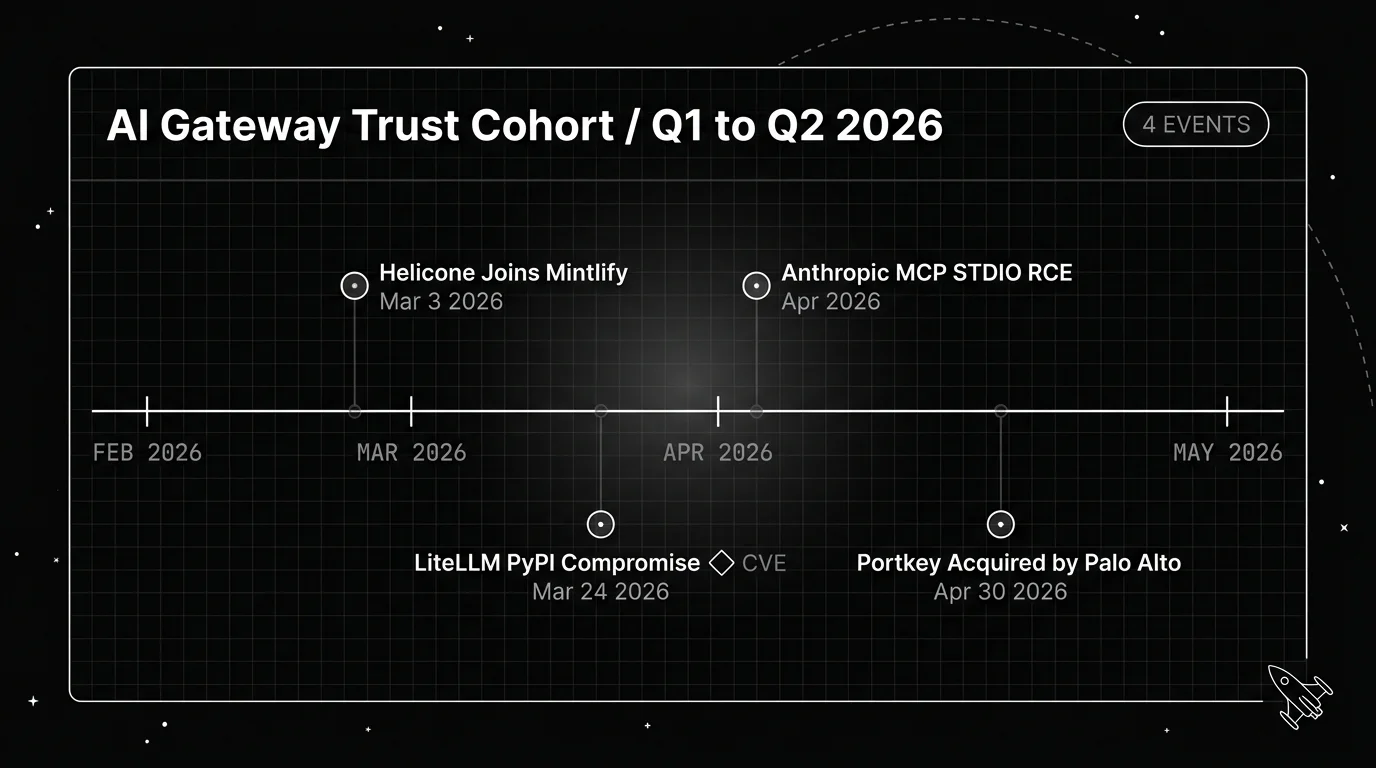

The 2026 Gateway Migration and Trust Cohort

Every gateway listicle on the SERP is treating these as if they didn’t happen. They did, and they reshape the cost-optimization procurement question for 2026.

• Helicone joining Mintlify (March 3, 2026). Helicone acquired by Mintlify; public roadmap shifts toward documentation-platform-first. Existing Helicone users should treat this as a planned migration window, not a continued procurement.
• LiteLLM PyPI supply-chain compromise (March 24, 2026). Versions 1.82.7 and 1.82.8 were compromised on PyPI; the malicious package exfiltrated SSH keys, cloud credentials, and Kubernetes configs to an attacker-controlled endpoint. Pin commit hashes, scan dependency trees, rotate any credentials accessible to an affected install, and upgrade past 1.83.7. Primary source: the Datadog Security Labs writeup.
• Anthropic MCP STDIO RCE class (April 2026). OX Security disclosed an STDIO transport class flaw affecting 7,000+ publicly accessible MCP servers and 150M+ downstream downloads, with multiple CVEs filed across downstream implementations. MCP gateways are now expected to enforce least-privilege tool access, OAuth 2.1, and Streamable HTTP transport. Primary coverage: the Hacker News report on the Anthropic MCP design vulnerability.
• Portkey acquired by Palo Alto Networks (April 30, 2026). Acquisition announced; the gateway will become the AI Gateway for Prisma AIRS, with close expected in PANW fiscal Q4 2026. Standalone-product continuity is pending integration; verify roadmap before signing a multi-year contract. Primary source: the Palo Alto Networks press release.

The practical takeaway: for the next twelve months, license clarity and acquisition independence are part of the cost-optimization decision. A cheap gateway you have to migrate off in six months isn’t cheap.

Which Cost-Optimization Gateway Is Right for You in 2026?

The buyer profile drives the pick more than the feature matrix does. OpenTelemetry-first engineering teams pick Future AGI Agent Command Center; multi-tenant SaaS teams that want a managed dashboard pick Portkey; Python-first ML-platform teams pick LiteLLM; early-stage routing experiments pick OpenRouter; Go shops or Claude-Code-at-scale teams pick Bifrost.

LLM cost optimization in 2026 isn’t a single feature. It’s a stack: provider cost routing, exact caching, semantic caching, per-virtual-key budgets, and OpenTelemetry-native cost telemetry, running at the same network hop, under a license that isn’t about to be re-platformed inside an acquirer.

Future AGI Agent Command Center is the strongest single pick when the buying constraint is one Apache-2.0 binary that ships every layer of the cost stack self-hostable. Teams already on Portkey should weigh the Palo Alto integration timeline; Python-first teams should pin LiteLLM commits or upgrade past 1.83.7; Go shops or Claude-Code-at-scale teams should benchmark Bifrost.

For deeper reads: the Agent Command Center docs, the Future AGI GitHub repo, the Future AGI observability docs, the Future AGI Protect docs, the Future AGI Evaluation docs for the held-out evaluator that pairs with cost-optimized routing, and the OpenTelemetry GenAI semantic conventions.

Try Future AGI Agent Command Center free: drop-in OpenAI-compatible routing, per-virtual-key budgets, exact plus semantic caching, 18+ inline guardrails including MCP Security, and OpenTelemetry-native cost telemetry in one Apache-2.0 Go binary.
