1. Introduction

Your agent works in staging. It calls the right MCP tools, returns clean outputs, and passes your test suite. Then it hits production. A user sends a slightly different query, and suddenly the agent picks a wrong tool, passes malformed arguments, and chains three unnecessary calls before returning garbage. Sound familiar?

This is the core challenge of evaluating MCP-connected agents in production. The Model Context Protocol (MCP) has quickly become the standard way to connect AI agents to external tools, data sources, and APIs. Anthropic open-sourced MCP in late 2024, and within a year it had over 97 million monthly SDK downloads and 10,000+ published servers. In December 2025, Anthropic donated MCP to the Linux Foundation's Agentic AI Foundation (AAIF), with OpenAI, Google, Microsoft, and AWS all backing the move. Every major AI platform now supports it.

But here is the problem nobody is solving well yet: how do you actually evaluate agents that dynamically connect to external tools via MCP once they are live? Static test cases won't cut it. The agent's behavior is non-deterministic. Tool selection happens at runtime. And tool call chains can branch in ways you never anticipated.

This guide breaks down exactly how to perform MCP-agent evaluation in production, with concrete metrics, tracing strategies, and scoring frameworks you can implement today.

2. Why MCP Changes the Evaluation Entirely in 2026?

Before MCP, most agents had a fixed set of hardcoded tools. You could write deterministic tests: "Given this input, the agent should call search_docs with these parameters." Simple.

MCP flips this model. An MCP-connected agent discovers tools at runtime from one or more MCP servers. The available tools can change between requests. The agent decides which tools to call, in what order, with what arguments, based on the user's prompt and the context injected through MCP resources.

This creates three evaluation problems that didn't exist before:

Dynamic tool selection is inherently non-deterministic. When you throw the same query at the system, you will actually get different sequences of tool calls based on what's happening behind the scenes. It really depends on which MCP servers you have got hooked up at that moment and which tools they are making available. So you can't really sit there and say "hey, the agent needs to call this specific tool" because that's not how it works. You need to evaluate whether the agent's choice was reasonable given the available options.

Context injection needs validation. MCP servers provide resources (context) that influence the agent's decisions. If a resource returns stale data or unexpected formats, the agent might reason incorrectly. Your evaluation needs to cover whether the injected context was used appropriately.

Tool call chains need end-to-end tracing. When a user makes just one request, it can actually set off a whole chain reaction of anywhere from 5 to 10 MCP tool calls that spread across different servers. Now here's the thing: every single one of these calls comes with its own response time, whether it succeeds or fails, and how good the output turns out to be. So what you have got to do is follow the entire chain from start to finish and look at how each individual step performs, plus how everything works together as a complete process.

3. The Five Pillars of MCP Agent Evaluation

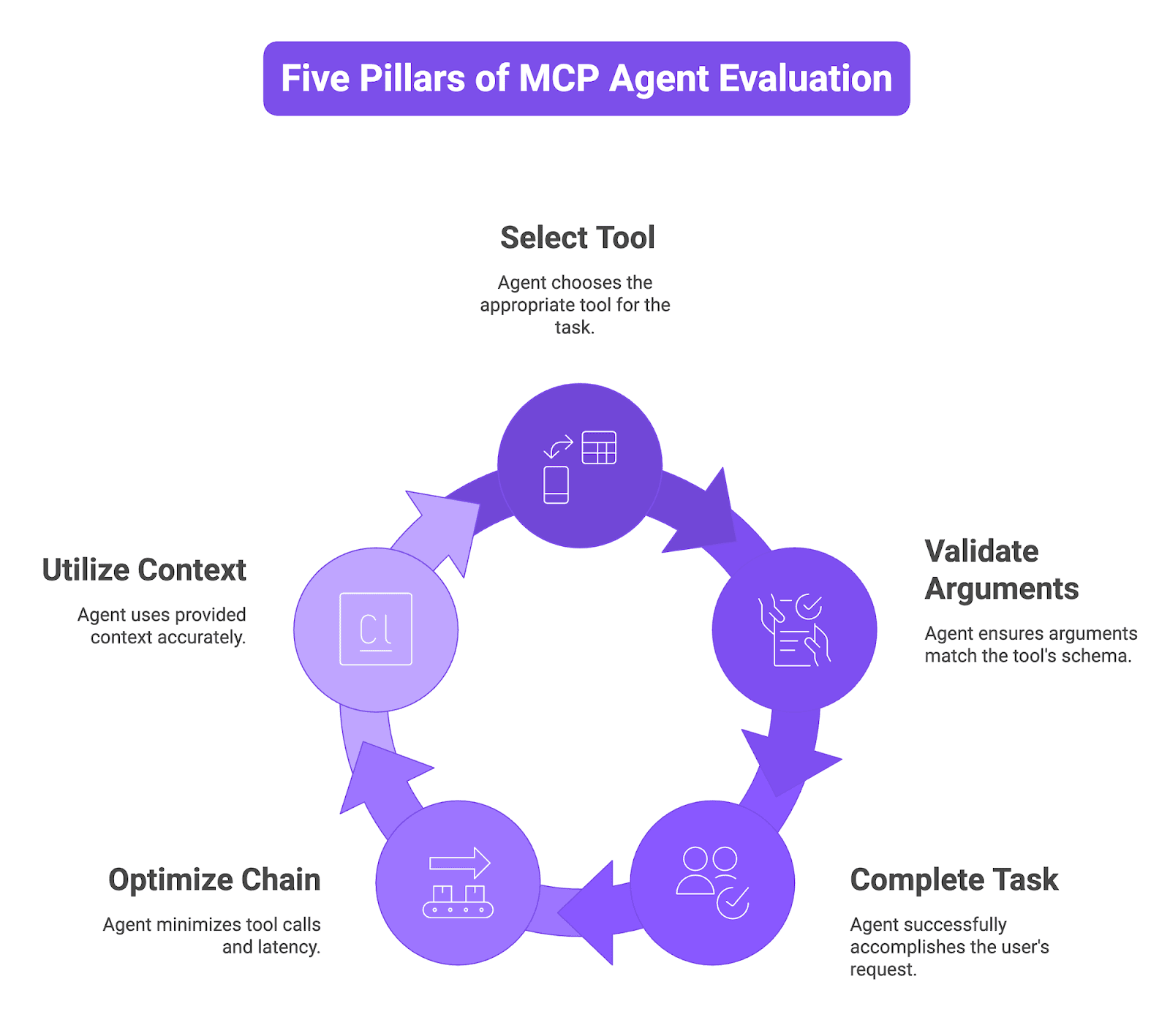

Image 1: Five Pillars of MCP Agent Evaluation

Here is a framework for evaluating MCP-connected agents in production, organized into five measurable dimensions:

3.1 Tool Selection Accuracy

Did the agent pick the right tool for the task? This is the most fundamental metric, and in an MCP context, it's harder to evaluate than it sounds.

Measure this by comparing the agent's tool selection against a set of labeled examples where human reviewers have identified the optimal tool(s) for a given query. You will want to track two sub-metrics here:

• Precision: Out of all the tools the agent decided to call, how many were actually necessary?

• Recall: Out of all the tools that really should have been called, how many did the agent actually use?

When you have got high precision but low recall, it means the agent is playing it too safe and missing out on tools that could actually help. On the flip side, when you see low precision paired with high recall, the agent is basically going overboard and calling way too many tools, which just burns through tokens and slows everything down.

3.2 Argument Correctness

Even when the agent picks the right tool, it can pass wrong arguments. An MCP tool might expect a documentId string, and the agent sends a full URL instead. Or it omits a required parameter.

You can evaluate whether the arguments are correct by doing the following:

• Make sure the arguments match up with what the MCP tool's JSON schema actually expects

• Double-check that the types are right (like making sure you have got a string where a string belongs, not mixing it up with numbers or booleans)

• Confirm that all the required fields are actually there and not missing

• Look at the semantic accuracy and ask yourself: did the agent pass the correct document ID for this specific task, or did it just throw in any random document ID?

3.3 Task Completion Rate

This is the bottom-line metric. Did the agent actually accomplish what the user asked for? A perfect tool selection score means nothing if the final output is wrong.

Score task completion with LLM-as-a-judge evaluators that assess the final response against the original user intent. This captures cases where every individual tool call succeeded but the agent failed to synthesize the results correctly.

3.4 Chain Efficiency

MCP-connected agents can make far more tool calls than necessary. An agent that calls 8 tools to answer a question that needed 2 is wasting tokens, increasing latency, and raising costs.

Track:

• Total tool calls per request

• Redundant calls (same tool, same arguments)

• Unnecessary calls (tools called but outputs not used in the final response)

• Total chain latency

3.5 Context Utilization

MCP servers expose resources (context) that influence the agent's reasoning. Evaluate whether the agent used the provided context accurately or hallucinated information that contradicted it. Key metrics: groundedness and context relevance.

4. MCP Agent Evaluation Metrics Table

Table 1: MCP Agent Evaluation Metrics

5. How to Trace MCP Tool Calls in Production

You can't evaluate what you can't see. Tracing is the foundation of any production MCP evaluation strategy.

The standard approach is OpenTelemetry-based instrumentation. Each MCP tool call becomes a span with attributes for: tool name, server name, arguments passed, response received, latency, and status code. These spans nest under a parent trace that represents the full user request.

Here's what a well-instrumented MCP trace should capture:

• Root span: User query received, final response returned

• LLM decision span: Model reasoning, tool selection decision

• MCP tool call spans: One per tool invocation, with arguments and response

• Context retrieval spans: MCP resource fetches

• Synthesis span: Final response generation from tool outputs

Future AGI's TraceAI is an open-source package that makes this instrumentation straightforward. It extends OpenTelemetry with AI-specific semantic conventions and supports 20+ frameworks including OpenAI, Anthropic, LangChain, and CrewAI. Setup takes under 10 lines:

Once traces are flowing, you can visualize every LLM call, tool invocation, and retrieval step as nested timelines on the Future AGI Observe dashboard, with latency, cost, and evaluation scores side-by-side.

6. Building Your MCP Evaluation Pipeline: Step by Step

Step 1: Instrument Your Agent

The best way to kick things off is by setting up auto-instrumentation with TraceAI or a similar library that plays nice with OpenTelemetry. You really want to make sure you are grabbing those MCP-specific details too. That means tracking which server the tool actually came from, the version of the schema it is using, and whether the call was just a retry.

Step 2: Define Your Evaluation Criteria

Pick metrics from the five pillars above based on your use case. A support agent might prioritize task completion and groundedness. A code generation agent might prioritize argument correctness and chain efficiency.

Step 3: Set Up Automated Evaluators

A task got completed or how good the response quality is, you will want to go with LLM-as-a-judge evaluators. But when it comes to the objective measurements (think schema compliance or whether you a're hitting your latency thresholds), stick with deterministic validators.

Now, Future AGI's evaluation SDK actually comes packed with over 60 pre-built templates that you can use right out of the box. These cover everything from factual accuracy and groundedness to tone, how concise things are, and a whole lot more:

Step 4: Sample and Score Production Traffic

Don't evaluate every single request. Set a sampling rate (10-20% is usually sufficient) and run your evaluators on the sampled traces. Future AGI lets you schedule Eval Tasks that score live or historical traffic with configurable sampling rates and alerting.

Step 5: Set Alerts on Regression

The whole point is catching problems early. Set threshold-based alerts:

• Task completion drops below 80%? Alert.

• Average tool calls per request spikes above 6? Alert.

• Argument schema compliance dips below 95%? Alert.

Route these to Slack, PagerDuty, or your CI/CD pipeline to close the feedback loop.

7. Common MCP Evaluation Pitfalls (and How to Avoid Them)

Table 2: Common MCP Evaluation Pitfalls

8. Closing the Loop: From Evaluation to Improvement

Evaluation without action is just monitoring. The goal is a continuous improvement cycle:

1. Trace every MCP tool call in production with OpenTelemetry-compatible instrumentation.

2. Evaluate sampled traces across your five pillar metrics automatically.

3. Identify failure patterns through clustering (which tool calls fail most? which queries produce the worst task completion scores?).

4. Iterate on prompts, tool descriptions, and MCP server configurations based on evaluation feedback.

5. Verify improvements by comparing evaluation scores across deployment versions.

Future AGI supports this full loop: TraceAI captures traces, the evaluation SDK scores them, and the Observe dashboard surfaces regressions. The platform also supports auto-optimization, where evaluation feedback refines prompts automatically.

The teams that ship reliable MCP-connected agents aren't the ones with the best models. They are the ones with the best evaluation pipelines. Start tracing your MCP agents today.
