What is LLM Observability & Monitoring? - The Ultimate LLM Observability Guide

What is LLM Observability & Monitoring? - The Ultimate LLM Observability Guide

  1. Introduction

LLM Observability refers to the tools and practices used to monitor, understand, and optimize the behavior of Large Language Models (LLMs) during inference in production and development pipelines. Just as traditional software observability tracks servers, databases, application health, and other key metrics, LLM observability makes AI systems transparent — enabling teams to catch issues like hallucinations, latency spikes, retrieval failures, or broken tool calls before they escalate to any further system failure.

Let’s take an analogy of running a modern logistics network: it’s not just enough to realize the routes of trucks; we need the real-time tracking of where they are, what the supply chains are, and if they are delayed, what the call to action is. In the same way, LLM systems involve multiple “moving parts” (prompts, embedding generation, tool invocations) that need constant visibility. As AI becomes part of a core infrastructure layer in many products, LLM observability is no longer just an option; it becomes critical to ensure reliability, cost control and user trust, just like monitoring supply chains is crucial for a successful logistics operation

  1. Why LLM Observability is Needed?

Unlike traditional software systems, LLM applications are:

  • Non-Deterministic: Their outputs are unpredictable as they work on massive neural network architecture that are probabilistic in nature

  • Opaque: The architecture of the models trained on massive amounts of data are black box in nature, we can’t actually seek what’s happening inside

  • Multi-Component: There can lot of small components working together to create a bigger picture (for example RAG, Tools, etc)

  • UX-Faulty: Since their outcomes are non deterministic they can actually break the User Experience

  1. Key Elements to Trace in Large Language Model Systems

Component

What to Observe / Track

Importance

Inputs

Prompt structure, retrieval context, user query

Critical: poor prompts or retrievals directly degrade model outputs.

Outputs

Model responses, quality, hallucinations

Critical: defines user trust and system usability.

Latency

End-to-end inference time, API latency, retrieval delay

High: slow systems lead to abandonment.

Token Usage

Input/output tokens, cost per call

High: affects scalability and pricing.

Retrieval (RAG)

Retrieved documents, match quality, source relevance

Critical: bad retrieval = hallucinated or wrong answers.

Tool Use (Agents)

Tool invocation success/failure, argument correctness

Medium to High: minor failures may cascade into major task failures.

Error Logs

Timeouts, model failures, malformed prompts, chain failures

Critical: Early indicators of system health and necessary for debugging and reliability.

Evaluation

Evaluating various components, testing the workflows

Critical: Without it, system degradation is inevitable.

  1. The LLM Observability Landscape

The field of LLM observability has evolved rapidly, with several tools emerging to address different aspects of monitoring and debugging LLM applications. Popular solutions include LangSmith, which focuses on tracing and debugging LangChain applications, and other specialized tools for monitoring specific aspects like token usage or response quality.

Future AGI stands out in this landscape by providing a comprehensive, easy-to-integrate observability solution with state-of-the-art evaluation capabilities. Our platform combines the best features of existing tools while adding unique capabilities like:

  • Advanced evaluation frameworks for multiple data modalities

  • Seamless integration with popular LLM frameworks

  • Real-time monitoring and alerting

  • Version management and A/B testing

To get started with practical implementation, refer to our LLM Observability Cookbook.

In the following sections, we'll explore how to implement LLM observability using Future AGI's platform, covering everything from basic setup to advanced features.

4.1 Key Features Provided By Future AGI

Future AGI offers a python SDK for the observability which is known as TraceAI, this library is designed to tackle the enterprise grade LLM Observability. It not only enables detailed logging and tracking of model behavior but also integrates Evaluations for your existing workflows for smooth and effective monitoring.

4.1.1 Real-Time Tracing Dashboard

Visualize Every LLM Interaction as a trace. Whether it's a simple chatbot session, or multi turn chain, or a multi agent interaction system with tool calling and embedding retrievals. You get a full end-to-end view of your application, This allows you to

  • Step-by-step execution breakdown

  • Model version tracking

  • Prompt-template correlation

4.1.2 Custom Evaluation Framework:

Future AGI provides you a variety of Evaluations for your generative AI use cases, they are not limited to text but are also included for other data modalities including vision and audio. Some example evaluation metrics that are easy to be setup are:

  • Factual Accuracy for Ground Truth Evaluations

  • Deterministic Evaluations For your custom needs

  • Analyzing Audio Quality for your synthetic speech outputs

4.1.3 Failure and Anomaly Detection:

Get Automatic alerts when something goes wrong- be it prompt injection, latency issues, or failure in evaluations. These alerts can be integrated well through the dashboard which can be integrated into your Emails and Other Platforms.

4.1.4 Version Management:

Track how changes to prompts, context templates, or tool configurations affect outputs. A/B test different versions and get insight into:

  • Response quality shifts

  • Cost and latency changes

  • Evaluation Metrics

  1. Setting up LLM Observability With FutureAGI

The setup process is very developer friendly and easy to integrate, Future AGI offer support for variety of popular frameworks like Langchain, llama-index, Anthropic, Openai etc.

Step 1: Installing The Dependencies

Future AGI's Observability feature can be found in the python packages of traceAI relevant to each framework, for the langchain below is the relevant library

pip install traceAI-langchain

Step 2: Export your API Keys in environment variable

You can get your keys after creating the futureagi account at app.futureagi.com

FI_API_KEY = "xxxxxxx000xxxxx"
FI_SECRET_KEY = "xxxxx0000xxxxxxx"

Step 3: Register Your Pipeline

Future AGI Provides two Observability Features: Protoype and Observe Here's when you have to select one of them

Protoype: When you are building your application and experimenting on workflows enabling you to do version management and A/B Testing to optimize your workflow. This is where you can create various prototypes of your applications that you plan to deploy

Observe: When you are ready to deploy your application and want to log the realtime user interaction to have further analysis.

Below is an example snippet for Observe

from traceai_langchain import LangChainInstrumentor
from fi_instrumentation import register
from fi_instrumentation.fi_types import (
    EvalName,
    EvalSpanKind,
    EvalTag,
    EvalTagType,
    ProjectType
)

trace_provider = register(
project_type = ProjectType.OBSERVE
session_name = "Observe_Session"
project_name = "Name_Of_The_Project"
)

LangChainInstrumentor().instrument(trace_provider=trace_provider)

And now you are ready to have your LLM application being traced, monitor, debug by checking the dashboard of Future AGI

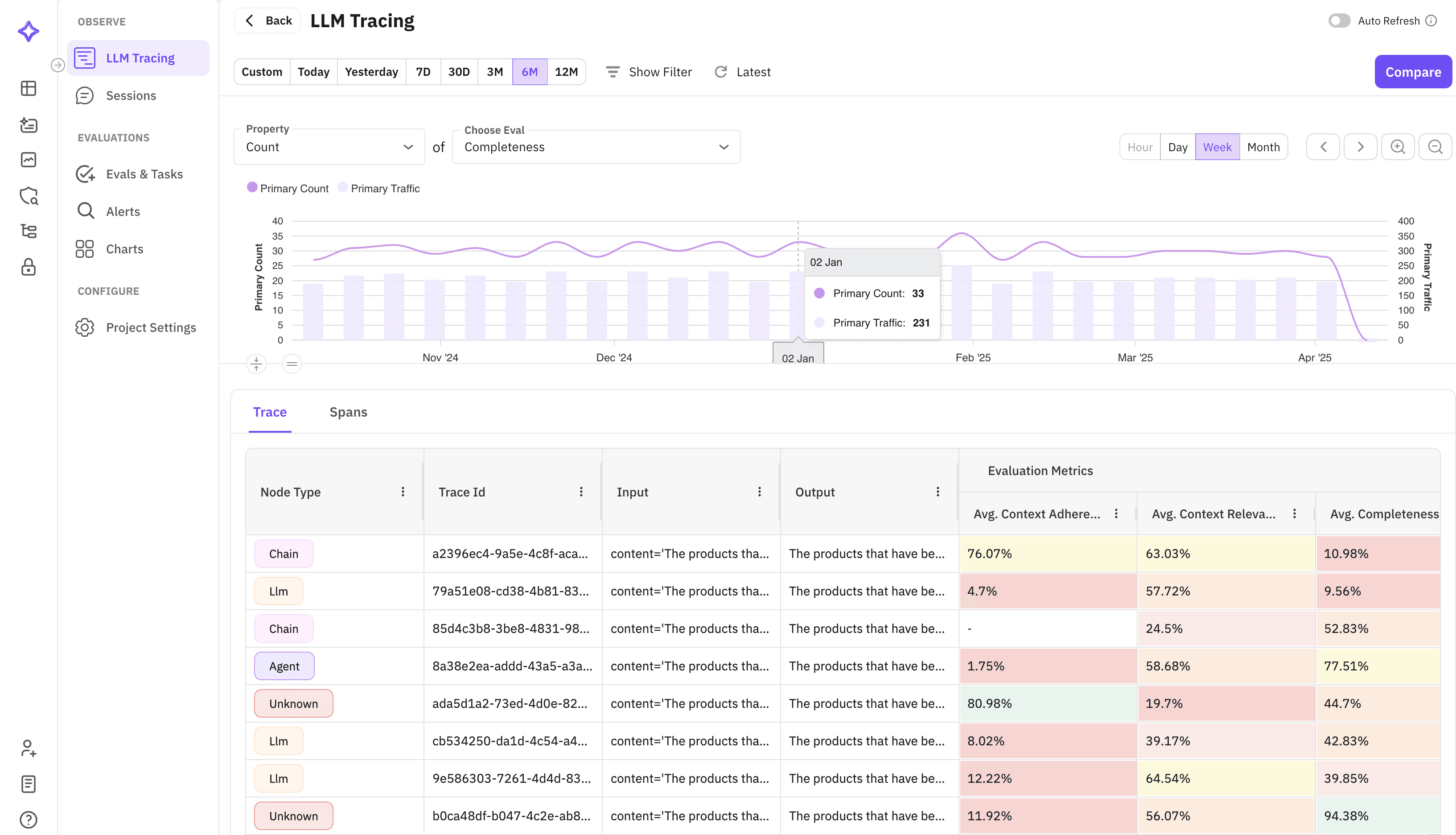

A sample dashboard of Future AGI showcasing the Observe Feature and deriving the necessary insights for the LLM Application through the power of LLM Observability

Now that we have deployed our application and we are continuously monitoring the workflow, we can start running evaluation for the data to identify the potential risks of failure or enhance the user experience by analyzing the data and optimizing our AI Workflows. FutureAGI provides custom evaluations suited to your use case which are very easy to setup.

To configure Evals you can use Evals & Tasks Section to Setup Eval easily for your live or historical data

  • Go to the Evals & Tasks section

  • Click on Create New Task

  • Write the name of your task and select the spans you want to Evaluate on (Say LLM)

  • Select the data (Either Historical or Live )

  • Select one of the Evaluations you want to perform

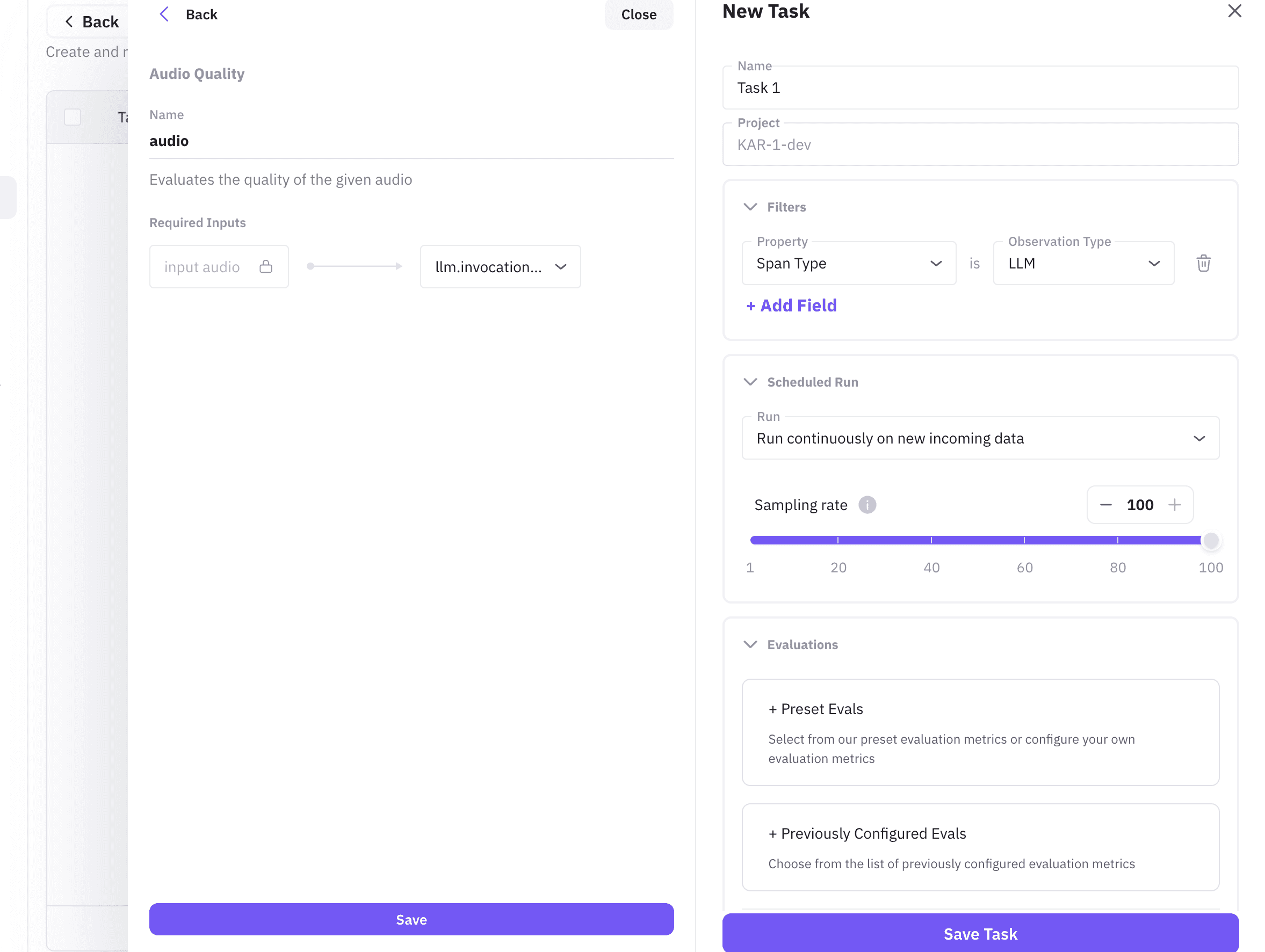

An example of Future AGI tasks setup to setting up Evaluations for your workflows

  1. Best Practices for Implementing LLM Observability

Whether you're deploying a simple chat assistant or a complex multi-agent system, following these best practices will ensure your observability setup is effective, scalable, and actionable.

6.1 Start integration of Observability into early stages of development

Don't wait until production. Enable tracing and evaluation during the development phase to:

  • Debug workflows while building

  • Evaluating Your Test Cases

  • Benchmarking on various datasets

FutureAGI provides a feature named Prototype suited for exactly this case.

6.2 Instrument All Key Components

Make sure you're tracing across the entire LLM pipeline:

  • Prompt generation logic

  • Context retrieval (for RAG)

  • Tool/agent calls

  • Final response generation

Gaps in tracing = blind spots in debugging. Use auto-instrumentation when available and fallback to manual spans for custom steps.

6.3 Set Up Alerts for Critical Failures

Define alerts and thresholds for:

  • Latency spikes

  • Empty or malformed responses

  • Tool failure rates

  • Retrieval mismatches

Route alerts to Slack, PagerDuty, or your CI/CD pipeline to close the loop with engineering teams.

6.4 Prioritize Cost + Latency alongside Quality

High-quality outputs don't justify runaway cost or unresponsive apps. Use observability to track:

  • Token usage

  • Response time per step/component

  • Cost per session or user interaction

This helps you optimize performance–cost–quality trade-offs.

6.5 Review and Refine Regularly

Make observability reviews part of your model improvement cycles. Ask:

  • Are our alerts meaningful?

  • Are we evaluating the right spans?

  • What are our top failure modes this month?

Iterating on observability is how you stay ahead of model regressions and data drift.

6.6 Use a Single Source of Truth for All Traces

Centralize traces, logs, and metrics in one unified dashboard (like Future AGI). Avoid context switching between logs, metrics, and model outputs, it slows down debugging and invites missed signals.

  1. Conclusion

In today’s rapidly evolving AI landscape, LLM observability isn’t just a nice-to-have—it’s the cornerstone of building reliable, transparent, and scalable language applications. By instrumenting your pipelines , tracing each prompt and response and each event, you gain insights to diagnose issues swiftly and can optimize your workflows to achieve perfection

As models and use cases grow in complexity—whether you’re running a simple chatbot or orchestrating a multi-agent RAG system—the clarity provided by a unified observability platform becomes invaluable. With real-time dashboards, custom evaluation frameworks, and robust version management, You’ll not just detect anomalies but also continuously improve your product’s quality, aligning your AI outputs with business goals and user expectations.

Embrace LLM Observability today to transform your AI’s blackbox into a more transparent engine. Fortify your applications against unexpected failures, and unlock the full potential of generative AI in production
