Understanding RAG LLM: A Powerful Approach for AI Models

1. Introduction

RAG LLM (Retrieval-Augmented Generation with Large Language Models) is an approach that enhances AI models by combining generation with retrieval. Unlike traditional LLMs, which rely primarily on pre-trained data, RAG LLMs retrieve relevant information from pre-indexed knowledge bases, vector stores, or custom datasets to provide accurate and contextualized responses. While RAG can be integrated with a live API to access real-time data, it typically works by retrieving information from structured sources rather than streaming data directly from the web. This method combines real-world dynamics with traditional static knowledge, expanding the application of RAG LLM in generative AI with enhanced retrieval. For a deeper understanding of RAG and how it compares to fine-tuning, check out our blog.

What is RAG?

Retrieval-Augmented Generation (RAG) is an AI framework that combines retrieval and generative capabilities of language models (LMs). A RAG model does not just depend on its pre-training but rather retrieves relevant documents or data from other databases, vector stores or even the web to improve and create more accurate outputs.  Using a RAG Model, the hallucinations are minimized, factual correctness is increased, and the AI is updated without retraining. RAG is often used in chatbots, question-answering systems and enterprise search, where accurate and current information is important.

Why is RAG important in Large Language Models (LLMs)?

Standard large language models (LLMs) are limited in scope in that they generate responses from data that may become outdated. RAG LLM works around that with fresh relevant information, reducing the misinformation and response quality.  This makes it an important element for AI-driven applications that require real-time data access. Models RAG LLM keep artificial intelligence answers relevant and factual.

Key challenges in traditional LLMs that RAG solves

• Hallucinations: Traditional LLMs often generate plausible but incorrect responses. RAG LLM mitigates this by grounding outputs in retrieved facts.

• Static Knowledge: LLMs lack access to new information post-training. Retrieval-augmented models dynamically fetch external knowledge.

• Domain-Specific Adaptation: RAG LLM enables AI to tailor responses based on industry-specific data, making it ideal for enterprise applications.

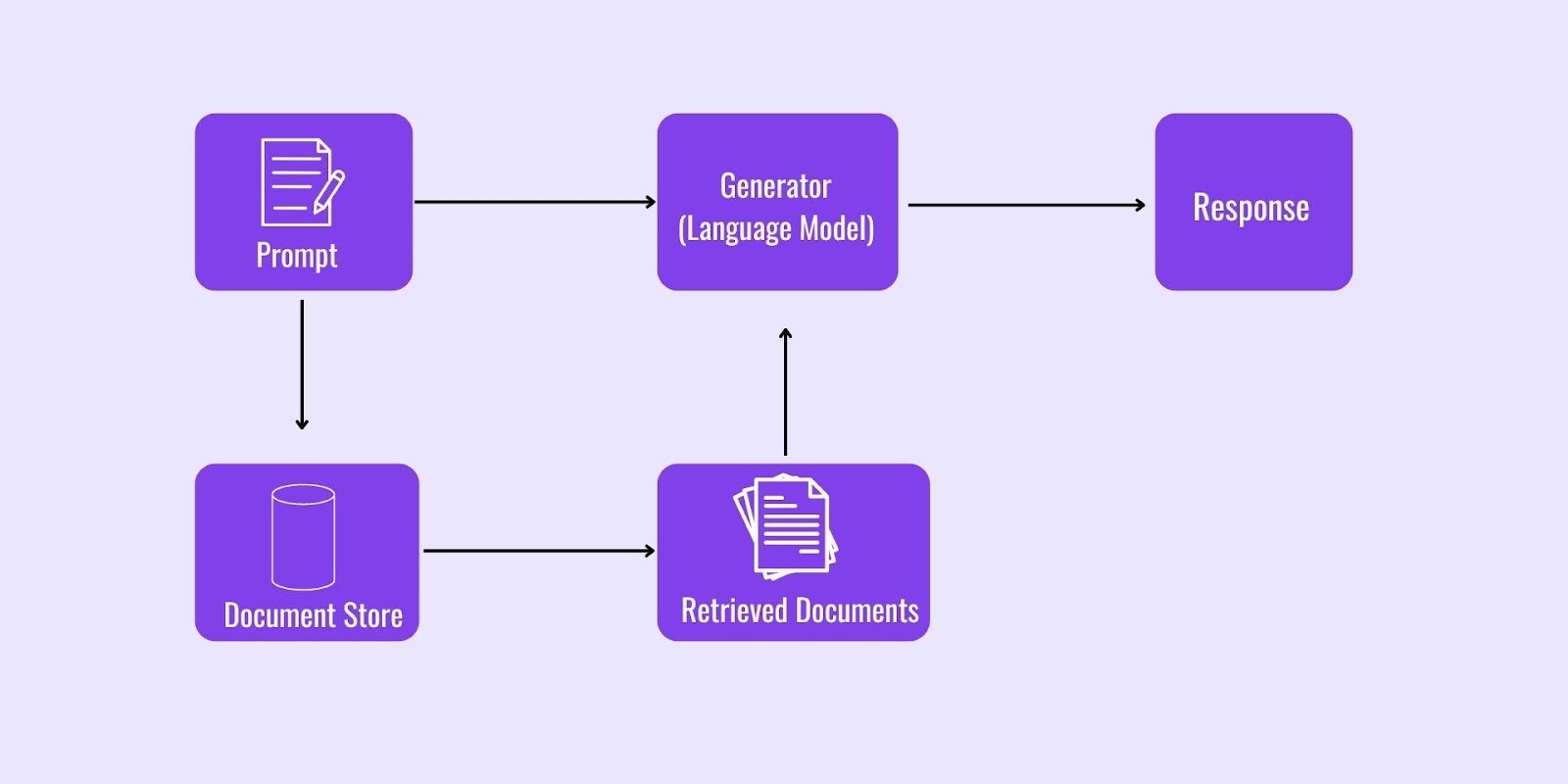

2. Core Architecture of RAG

Overview of RAG’s Two Key Components

1. Retriever:

•  The retriever is responsible for fetching relevant documents from an external knowledge base. It uses various search techniques such as:

  • FAISS (Facebook AI Similarity Search): A fast, scalable library for searching high-dimensional vectors efficiently.

  • BM25 (Best Matching 25): A ranking function that gives scores to documents based on their term frequency and inverse document frequency.

  • Dense Embeddings: Neural network-based vector representations that capture semantic meaning for better similarity matching. They are commonly used within retriever techniques, such as dense passage retrieval (DPR) and semantic search, to improve the accuracy of information retrieval rather than functioning as a standalone retriever technique.

The retriever leverages these techniques to provide the generator with relevant context that aren’t hallucinated and are more factually accurate.

2. Generator:

• The generator is an LLM that synthesizes response using the retrieved documents. Instead of relying solely on pre-trained knowledge, it dynamically integrates external data into its responses. Key aspects of the generator include:

  • Context-Aware Generation: The model conditions its output on retrieved passages, allowing for more precise and informed responses.

  • Mitigating Hallucinations: Since the generator uses external sources, it reduces the risk of fabricating facts.

  • Fine-Tuning for Domain-Specific Applications: LLMs in RAG setups can be fine-tuned to better integrate retrieved content with domain-specific knowledge.

Comparison with Non-RAG Architectures

• Traditional LLMs (e.g., GPT-3, GPT-4) rely entirely on their pre-trained weights, meaning their knowledge is static and limited to their training corpus.

• RAG models dynamically retrieve external knowledge, ensuring access to up-to-date and domain-specific information.

Key advantages of RAG over traditional models:

• Improved factual accuracy: External retrieval reduces misinformation and enhances response credibility.

• Reduced model size requirements: Since knowledge is retrieved as needed, RAG models don’t require extremely large parameter counts to store all possible information.

• Scalability: The retrieval mechanism allows LLMs to access virtually unlimited external knowledge without constant retraining.

Implementation Considerations

• Vector Databases: Efficient similarity search requires specialized databases, such as:

  • FAISS: Optimized for fast, large-scale vector similarity search.

  • Weaviate: A cloud-native vector search engine with built-in semantic search capabilities.

  • Pinecone: A managed vector database service that scales easily and integrates with LLMs.

• Keyword-Based Retrieval: Both keyword-based methods such as BM25 and Elasticsearch which are based on exact matching of phrases, are equally effective. This is contrary to the vector search-based method which is very useful in capturing the relationship of keywords semantically. These approaches are effective for well-defined, keyword-rich documents like legal documents and research articles.

• Hybrid Search: By using vector search and using keywords, you can get better retrieval quality as the combination is favourable. Hybrid search typically involves:

  • Ranking documents using BM25 for keyword relevance.

  • Re-ranking using vector similarity scores for semantic closeness.

  • Weighted fusion of results to balance precision and recall.

This hybrid approach is particularly effective in RAG systems where both structured data (e.g., databases, documents) and unstructured knowledge (e.g., conversational text, articles) need to be retrieved efficiently.

3. Data Sources for RAG

Structured vs. Unstructured Data Retrieval

• Structured Data: Sources such as relational databases (PostgreSQL, MySQL), NoSQL databases (MongoDB, DynamoDB), and knowledge graphs (Neo4j, RDF-based stores) are well-organized These sources supply data based on specific schemas, so we can accurately query them using SQL, GraphQL or other query languages. RAG implementations can integrate structured data using connectors or ORM layers like SQLAlchemy for efficient retrieval.

• Unstructured Data: This is any type of document (PDFs, web pages, free-text sources) where information is not organized in a particular way. All text processing techniques are required like Scanned PDFs need OCR, then text chunking, generation of embedding (can use OpenAI’s Ada or BERT-based embeddings), and vector search. Libraries such as Lang Chain and Llama Index help structure this retrieval process for LLMs.

Integrating RAG with Enterprise Knowledge Bases

• Enterprise repositories (e.g., Confluence, SharePoint, Google Drive) hold valuable domain-specific knowledge. By integrating these sources with RAG, organizations can enable AI-powered responses grounded in proprietary internal data.

• Tech stack for integration:

  • ETL Pipelines: Tools like Apache Airflow or dbt can automate data extraction, transformation, and ingestion into retrieval systems.

• Embedding Models: OpenAI, Cohere, or Sentence Transformers help convert documents into vectorized representations for similarity searches.

• Access Control & Security: Implement role-based access (RBAC) and authentication using OAuth, API tokens, or enterprise SSO when exposing proprietary data to AI models.

Using APIs, Databases, and Document Stores for Retrieval

• APIs: RESTful or GraphQL APIs serve as real-time data sources for RAG implementations. Middleware (e.g., FastAPI, Express.js) can act as an intermediary between LLMs and data sources, ensuring efficient querying with caching (Redis, Memcached) and rate limiting.

• Databases:

  • Relational Databases (SQL): PostgreSQL, MySQL enable structured storage with ACID compliance, used for precise filtering and joining of records.

  • NoSQL Databases: MongoDB, DynamoDB are better suited for semi-structured or hierarchical data (JSON, key-value stores), enabling flexible querying without strict schemas.

• Document Stores:

  • Elasticsearch: Full-text search engine ideal for keyword-based retrieval and indexing large text corpora.

  • Pinecone, Weaviate, FAISS: Vector databases optimized for semantic search, allowing embeddings-based similarity lookups in high-dimensional space.

  • Hybrid Retrieval: Combining keyword-based search (BM25, TF-IDF) with vector search (dense embeddings) improves RAG accuracy, enabling AI to retrieve the most relevant context.

4. Enhancing RAG with Advanced Techniques

Fine-Tuning Retrievers

• Dense Passage Retrieval (DPR):

DPR uses a dual-encoder model, where a question encoder and a passage encoder generate dense vector representations. This technique improves retrieval relevance over the traditional sparse methods of BM25. Fine-tuning the DPR on domain-specific datasets allows retrieval-quality improvement over the baseline sparse model including improved retrieval over BM25.

• ColBERT (Contextualized Late Interaction Model):

ColBERT balances efficiency and retrieval quality by computing contextualized token-wise embeddings. Unlike DPR, which computes full passage embeddings, ColBERT allows late interaction by storing token-level embeddings and performing efficient similarity matching at the search stage. This results in improved retrieval precision while maintaining scalability.

Using Hybrid Search

• Combining BM25 with Vector Search (FAISS):

BM25 excels at retrieving documents with exact keyword matches, while FAISS (Facebook AI Similarity Search) is optimized for high-speed vector-based retrieval. By blending both approaches, RAG models can handle both lexical and semantic similarity, ensuring that keyword-based and contextually relevant documents are retrieved. Hybrid search improves coverage, especially when working with diverse query types.

RAG with Multi-Hop Reasoning for Complex Queries

• Multi-Hop Retrieval for Multi-Faceted Questions:

Many real-world queries require retrieving multiple documents in a logical sequence. Multi-hop reasoning enables retrieval models to iteratively fetch relevant documents across different contexts before generating a response. This is particularly useful in legal, research, and investigative domains, where the answer to a question is spread across multiple documents.

• Graph-Based Retrieval & Link Prediction:

Advanced multi-hop retrieval techniques utilize knowledge graphs and link prediction models to establish relationships between retrieved passages. This allows RAG models to dynamically follow citation trails, entity connections, or cause-effect chains to enhance reasoning over long or complex queries.

Optimizing Latency vs. Accuracy Trade-offs

• Low-Latency Retrieval with Approximate Nearest Neighbours (ANN):

Techniques such as HNSW graphs or ScaNN allow for ultra-fast retrieval using nearest neighbour approximation techniques in vector space. Retrieval speeds are so fast, models are often deployed in services that need a near-instant response. Examples here include chatbots and customer support.

• High-Accuracy Retrieval with Dense Embeddings & Rerankers:

When accuracy is a priority, dense retrieval models can be combined with neural rerankers (e.g., Cross-Encoders or BERT-based rankers) to refine retrieved documents. While this increases computational cost, it ensures that only the most relevant passages contribute to the final response.

5. Implementation Strategies & Frameworks

Overview of Popular RAG Implementations

• Lang Chain: A modular framework for building LLM RAG pipelines. It provides composable components for retrieval, prompting, and memory management. Lang Chain integrates with vector databases (e.g., FAISS, Pinecone, Weaviate) and allows developers to define custom retrieval logic.

• Haystack: An open-source NLP framework supporting retrieval-augmented models. It offers out-of-the-box support for Elasticsearch, Milvus, and FAISS for document retrieval. Haystack’s pipeline-based architecture enables multi-hop retrieval, hybrid search (dense + sparse retrieval), and integration with various LLMs.

• Custom Implementations: Using Hugging Face’s Transformers and FAISS to enhance RAG LLM models. Developers can fine-tune transformer models on domain-specific data and leverage FAISS for scalable vector search. Custom implementations provide full control over indexing, retrieval logic, and LLM orchestration.

Choosing Between OpenAI, Hugging Face, or Custom Models

• OpenAI: GPT models with API-based retrieval capabilities for RAG LLM. OpenAI offers tools like function calling and retrieval augmentation via the API, making it easier to integrate structured knowledge into prompts. Suitable for teams looking for a managed, high-quality LLM without hosting overhead.

• Hugging Face: Open-source transformer models for fine-tuning LLM RAG solutions. Developers can train and deploy their models on Hugging Face’s Model Hub or run them locally using the Transformers library. Hugging Face also provides datasets and evaluate libraries for model benchmarking.

• Custom Models: Fully controlled, domain-specific tuning of generative AI with retrieval. This approach involves fine-tuning models like Llama, Mistral, or Falcon while implementing custom retrieval layers using FAISS, Chroma DB, or bespoke vector stores. Ideal for enterprises requiring deep customization and privacy.

Deployment in Cloud Environments

• AWS: S3 for document storage, Bedrock for AI model hosting with RAG LLM. AWS offers SageMaker for training custom models, OpenSearch for hybrid search, and Lambda for serverless retrieval processing. Bedrock supports managed APIs for LLM-based retrieval and generation workflows.

• GCP: Vertex AI for managed LLM RAG services. Vertex AI provides tools for training and deploying custom LLMs, while Cloud Storage acts as a scalable document store. Google’s Generative AI Studio simplifies RAG pipeline orchestration with embedding models and vector search in Big Query ML.

• Azure: Cognitive Search for advanced retrieval-augmented models. Azure AI Search allows hybrid retrieval (vector + keyword), while OpenAI Service provides access to GPT-based models with integrated retrieval. Azure Machine Learning enables end-to-end training and inference for domain-specific RAG LLMs.

6. Evaluating RAG Model Performance

Metrics for Evaluating Retrieval Quality

• Precision@K:

Measures the proportion of relevant documents among the top-K retrieved results. A higher Precision@K indicates that the retriever is accurately fetching the most useful documents. It is useful when the top results must be highly relevant, such as in question-answering systems.

• Mean Reciprocal Rank (MRR):

Evaluates how early the first relevant document appears in the ranked retrieval list. The reciprocal rank is calculated as 1 / rank of first relevant result’, and the mean is taken across multiple queries. This is crucial for applications were retrieving the most relevant document as early as possible improves downstream LLM performance.

• Recall:

This describes how many of the right documents were retrieved from all the right documents. It is better for the retrieval system to make a mistake by grabbing something unnecessary than miss out on something important. This is especially true for open-domain QA system. The system does not need to discriminate through the retrieved sources as long as they are all relevant. All relevant sources help improve the response quality of the model.

Measuring LLM Output Accuracy Post-Retrieval

• BLEU Score:

Compares the generated response to a reference response using n-gram overlap. A high BLEU score indicates that the retrieval-augmented generation (RAG) model produces text similar to ground-truth answers, making it useful for evaluating machine translation or structured output generation. However, it has limitations in assessing open-ended responses.

• ROUGE Score:

Measures recall-based overlap between generated and reference text, commonly used for summarization tasks. ROUGE-1 (unigram match) and ROUGE-L (longest common subsequence match) are particularly useful in evaluating how well the retrieved content contributes to coherent, contextually relevant LLM outputs.

Find out how to optimize RAG LLM perplexity to improve AI performance in our detailed analysis: Optimizing RAG LLM Perplexity.

Techniques for Debugging Retrieval Failures

• Error Analysis:

Involves examining failed retrieval cases to identify issues such as missing relevant documents, retrieving irrelevant content, or poor ranking. This often requires manual review, embeddings visualization, and analyzing similarity scores. Fixes may include improving embedding models, adjusting retrieval hyperparameters, or refining search queries.

• Re-ranking Models:

Enhances retrieval performance by applying a secondary ranking mechanism, often using BERT-based re-rankers or cross-encoders. These models reassess the initial retrieved set to prioritize the most relevant documents, improving Precision@K. Techniques such as fine-tuning re-rankers on domain-specific data can significantly improve final retrieval quality.

7. Real-World Use Cases & Applications

AI-Powered Chatbots with Enterprise Knowledge

RAG (Retrieval-Augmented Generation) LLM enables intelligent enterprise chatbots by integrating generative AI with retrieval mechanisms. Instead of relying solely on static, pre-trained knowledge, these chatbots can query internal databases, knowledge bases, and document repositories in real-time. By fetching the most relevant information dynamically, they provide more precise, context-aware responses to user queries. This is particularly useful for enterprise applications, where up-to-date policy documents, operational manuals, or customer data are essential.

Code Generation with Context-Aware Retrieval

AI-assisted coding tools utilize RAG LLM to enhance code generation with retrieval-based context. Most code generators do not produce an entire code snippet from model training. These tools retrieve relevant functions from various sources, such as API documentation, previous code, etc.  These tools get what you want from the past projects, API documentation, etc. and use them instead of just generating some code because it knows that code is not enough.

Automating Customer Support with Dynamic Knowledge Updates

Virtual assistants powered by RAG dynamically fetch current information from FAQs, support tickets, and troubleshooting guides to assist customers. In contrast to traditional chatbots, which depend on outdated pre-trained responses, these assistants are powered by AI. They can access the latest company policies, changes to services, technical documentation, and more in real-time. As a result, they are able to give updated feedback, contextually accurate feedback with human intervention.  More customers can help themselves to the service with automated knowledge retrieval to stay satisfied while minimizing costs.

Research Assistants for Scientific Literature Retrieval

Research assistants powered by AI use RAG LLM which can take the latest papers, journals, and patents for literature retrieval. These tools do not use out-of-date datasets, but they ask the likes of arXiv, PubMed, IEEE Xplore, etc. in real time for the most relevant research. Using citation ranking, document summarization, and semantic search, they keep researchers up to date effortlessly. This greatly speeds up literature review, idea validation, and discovery.

8. Challenges & Future of RAG in AI

Handling Hallucinations in RAG-Based Models

• Confidence Scoring: Implementing probability-based certainty thresholds to filter unreliable outputs. This can involve techniques like calibrated confidence scores, entropy-based filtering, or thresholding on log-likelihood values.

• Verification Mechanisms: Using cross-referencing techniques such as majority voting across multiple data sources, fact-checking via structured knowledge bases (e.g., Wikidata), and leveraging retrieval reranking with adversarial filtering to ensure the most reliable context is used.

Computational and Memory Constraints

• Optimized Indexing: Reducing the memory footprint through quantization techniques (e.g., product quantization, binary quantization) in vector databases like FAISS or ScaNN. Another solution is that the hierarchical indexes, like HNSW (Hierarchical Navigable Small World), can retrieve very fast at a minimal cost in accuracy.

• Efficient Caching: To save memory, use least recently used (LRU) cache for the most used retrieval results and cache the retrieval states in memory db like Redis or embedding cache layer for better latency and lower load.

Future Trends: RAG + Multimodal AI, RAG for Edge AI

• Multimodal RAG: Expanding retrieval-augmented systems beyond text to incorporate vision and audio modalities. This involves using cross-modal retrieval techniques, embedding fusion strategies (e.g., CLIP-based vision-language models), and designing multimodal encoders that retrieve and synthesize information from diverse data formats (text, image, audio).

• Edge AI: Deploying lightweight RAG models on edge devices using techniques like model distillation, quantized retrieval mechanisms, and on-device indexing (e.g., MobileBERT, TinyBERT for LLM compression). This enables decentralized intelligence for AI applications in low-latency environments, such as IoT devices and autonomous systems.

Summary

RAG LLM revolutionizes AI by integrating retrieval with generative capabilities, ensuring real-time, fact-based responses. By leveraging powerful retrievers and generators, RAG LLM addresses key challenges in traditional LLMs, such as hallucinations and static knowledge. With advanced techniques like hybrid search, multi-hop reasoning, and fine-tuned retrievers, it enhances accuracy and efficiency. Industry applications, from AI chatbots to research assistants, demonstrate its transformative potential. As computational optimizations and multimodal extensions evolve, retrieval-augmented models will continue to redefine the future of generative AI with retrieval-driven intelligence.
