Introduction
2025 has been identified as the Year of Agentic AI, but what does it mean for developers building production-grade multi-agent systems?
AI agents are no longer just used in research labs; businesses are quickly adopting them as well. Capgemini recent study says 10% of companies already use AI agents and 82% plan to do so within the next 1–3 years. According to predictions, the market for AI agents will grow to $47.1 billion by 2030, which supports this trend even more.
Despite the excitement, creating dependable multi-agent workflows is still quite difficult. Developers struggle with communication protocols, tool-calling mechanisms, and memory architectures. The complexity of managing multiple-agent systems can cause unpredictable behavior, including "hallucinations" when AI provides false or stupid information. It is critical to understand what makes multi-agent systems work and what doesn't.
For developers, it is important to learn complex function-calling patterns, create persistent memory architectures, and master complicated message schemas that go beyond basic JSON forms. Neglecting these areas can lead to systems that are vulnerable to failures, difficult to scale, and prone to errors. Agent communication and coordination must be flawless to prevent major breakdowns in complex environments.
In this article, established multi-agent system (MAS) design techniques are thoroughly examined. Some of the things that are talked about are fault-tolerant coordination patterns, long-term memory structures, and strict proof loops. The purpose is to assist you how to design scalable, multi-agent systems from prototypes to production systems.
What are Multi-Agent Systems (MAS)?
A Multi-Agent System (MAS) is a collection of autonomous agents that work to accomplish individual or collective objectives within a shared environment. Single-agent systems are characterized by the independent operation of a single agent, whereas MAS involves a combination of multiple agents, which can result in the appearance of complex behaviors and phenomena.
But what is Agentic AI?
The term "agentic AI" denotes systems in which agents are capable of autonomously executing actions, making decisions, and perceiving their environment with minimal human intervention.
A MAS can be defined as:
Agents: Entities that are autonomous and have the capacity to make decisions and execute actions.
Environment: The context or space in which agents operate and interact.
State: An overview of all the relevant data regarding the environment and agents at a specific moment.
Actions: The collection of potential operations or movements that agents can execute.
Observations: Information that agents perceive from the environment, which may be partial or complete.
The dynamics and interactions within a MAS are collectively defined by these components.
Now that we have a good idea of Multi-Agent Systems (MAS), let's look at their core architectural components.
Core Architectural Components
The design of systems that are efficient, scalable, and reliable is contingent upon an understanding of the fundamental components of Multi-Agent Systems (MAS). These components consist of long-term memory architecture, communication protocols, coordination mechanisms, autonomous agents, and tool-calling frameworks.
Agents
Agents in a Multi-Agent System (MAS) are self-sufficient entities that can understand and respond to their surroundings to complete certain tasks.
Characteristics of Agents:
Autonomy: Agents make decisions based on their perceptions and objectives, operating without central control.
Local Perspectives: Each agent may not have a comprehensive understanding of the entire system and may have a limited perspective.
Decentralization: The system is not governed by a single agent; rather, control is distributed among all agents.
Types of Agents:
Reactive Agents: Agents that are reactive do not keep an internal model and instead react instantly to external inputs.
Deliberative Agents: Possess internal models of the environment, which allow them to make informed decisions and plan accordingly.
Hybrid Agents: They use the advantages of both reactive and deliberative behaviors by combining them.
Roles and Responsibilities within a MAS:
Cooperative Agents: Work collaboratively to achieve common objectives, frequently involving communication and coordination.
Competitive Agents: Try to reach their own goals, which might be at odds with those of other agents. This can lead to competitive interactions.
Utility-Based Agents: Determine the best course of action by evaluating possibilities according to a utility function.
The ability of MAS agents to work alone, connect with others, and respond to changing environments lets the system solve difficult problems that would be too hard for a single agent to handle.

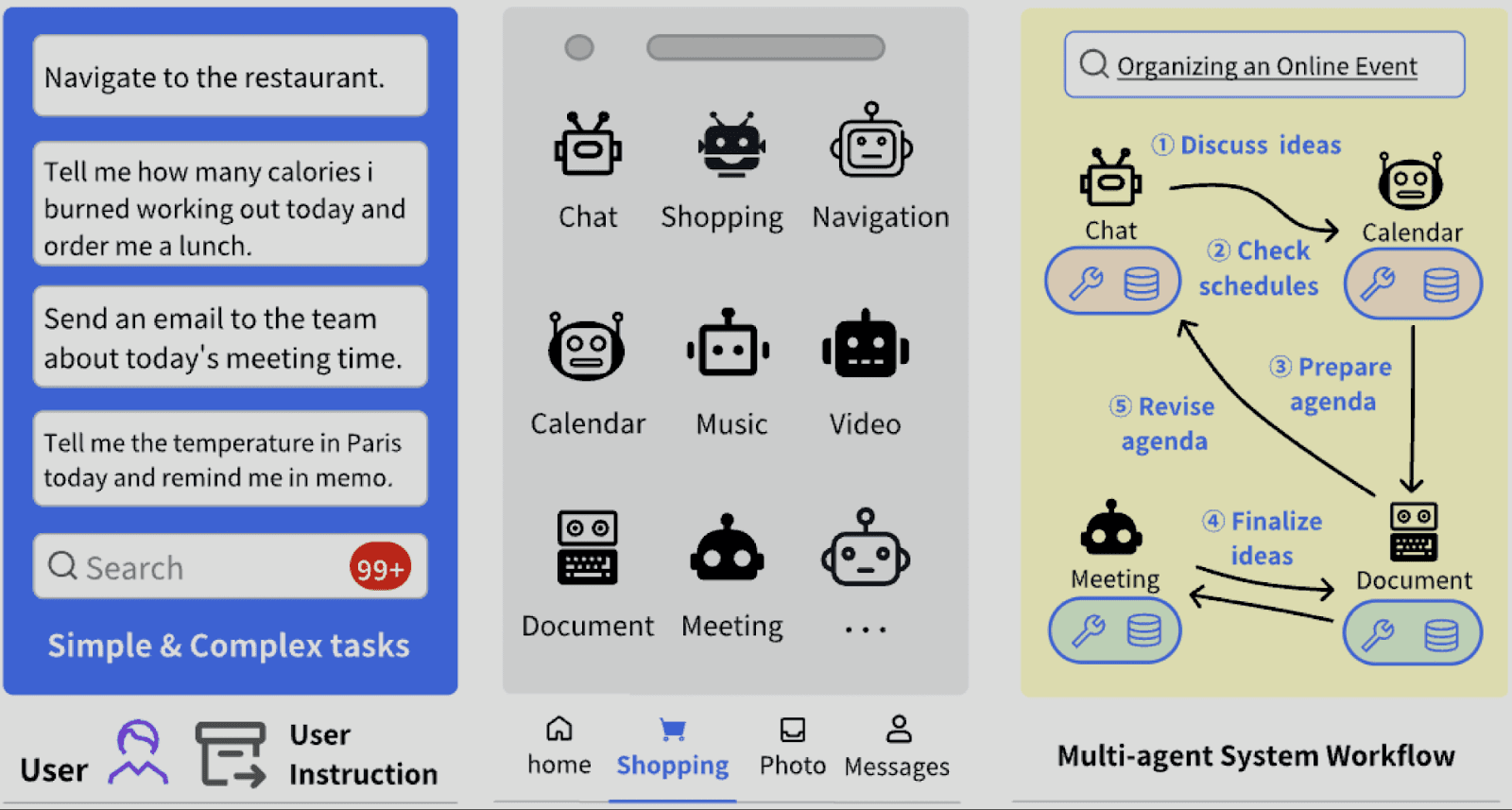

Figure 1: Multi-LLM-Agent System: Source
Communication Protocols
Multi-Agent Systems (MAS) require communication protocols that allow agents to collaborate and share information. These protocols specify the guidelines and structures for message exchanges, which helps make sure agents respond suitably to one another. Agents can work together on difficult tasks, adapt to changing surroundings, and reach group goals if they communicate to each other well.
Types of Communication
Centralized Communication: In this configuration, a central agent or system oversees all communications, while directing the flow of information between agents. It makes it easier to work together, but it can also lead to a single point of failure and make it harder to grow.
Decentralized Communication: In this case, agents communicate directly with one another without the intervention of a central authority. This method requires sophisticated protocols to manage interactions and prevent conflicts, but it improves the scalability and robustness of the system.
Communication Workflow:
The communication procedure in MAS typically consists of the following steps:
Message Creation: An agent creates a message that is intended for another agent and contains information or a request.
Transmission of the Message: The message is sent to a specific agent using the standard method of contact.
Message Reception: After receiving the message, the receiver agent uses the common protocol to understand its contents.
Action Execution: The recipient agent performs any necessary actions in response to the message, including the processing of data or the sending a reply.
Feedback Loop: The interaction cycle is continued when the receiver agent replies to the original sender, if required.
MAS agents can organize their work, share important information, and solve difficult problems more quickly when they follow these communication standards and workflows.
Long-Term Memory Architecture
Agents are capable of storing and retrieving information for extended periods of time due to long-term memory.
Types include:
Episodic Memory: Maintains a record of particular events and experiences.
Semantic memory: It is responsible for the storage of general knowledge and facts.
Procedure Memory: This is where you store information about how to do things.
Long-term memory storage backends:
Vector Databases: Handle high-dimensional data efficiently, making them ideal for similarity searches.
Knowledge Graphs: Show data by using entities and how they relate to each other, which makes complicated questions easier.
Relational Stores: Use structured tables to manage data according to predetermined schemas.
Strategies for memory consolidation improve the speed and accuracy of retrieval:
Indexing: Sorts info into groups that make searching faster.
Chunking: Puts together pieces of related knowledge to make them easier to understand.
Retrieve Augmentation: This method improves recall by linking similar facts, which leads to more accurate responses.
Tool-Calling Framework
Agents frequently have to use external tools to complete tasks. These interactions are effectively managed by effective frameworks:
Declarative Function Invocation: The system is able to determine how to execute the task by allowing agents to specify the tasks that need to be completed.
Imperative API Calls: The steps to interact with external tools are explicitly defined by agents.
Multi-agent systems that are efficient, scalable, and capable of managing complex tasks in dynamic environments can be developed by developers who carefully integrate these core components.
Design Strategies and Patterns
Effective Multi-Agent Systems (MAS) require a precise selection of architectural and design patterns, workflow optimizations, communication protocols, and memory management strategies. These components make sure that the system can grow, work well, and handle challenging tasks.
Architectural Patterns
MAS's efficiency and ease of maintenance depend on picking the right architecture. Two primary methods are as follows:
Modular Microservices: Each agent functions as a self-contained service that communicates via a network.
This pattern provides:
Scalability: Agents can be deployed across multiple servers to handle an increased workload.
Fault Isolation: When one agent fails, it doesn't affect the others directly.
Technology Diversity: The most appropriate technologies for the implementation of different agents are those that are most appropriate for their respective tasks.
However, this method might make communication more difficult and make handling interactions between services more difficult.
Monolithic Agent Orchestrator: All agents are integrated into a single application, which shares memory space and resources.
This design offers the following:
Lower Latency: Communication delays are minimized through direct function interactions.
Simplified Deployment: Version control and integration are simplified by a single deployment element.
However, it might make the system less flexible and cause problems with scalability and increased coupling between agents.
Furthermore, coordination structures can be:
Hierarchical Supervisor-Agent: This type of control works from the top down, with supervisors overseeing and delegating tasks to agents below them.
Decentralized Peer Mesh: Agents communicate directly with each other without a central authority, allowing for greater flexibility and resilience, but that requires robust conflict resolution mechanisms.

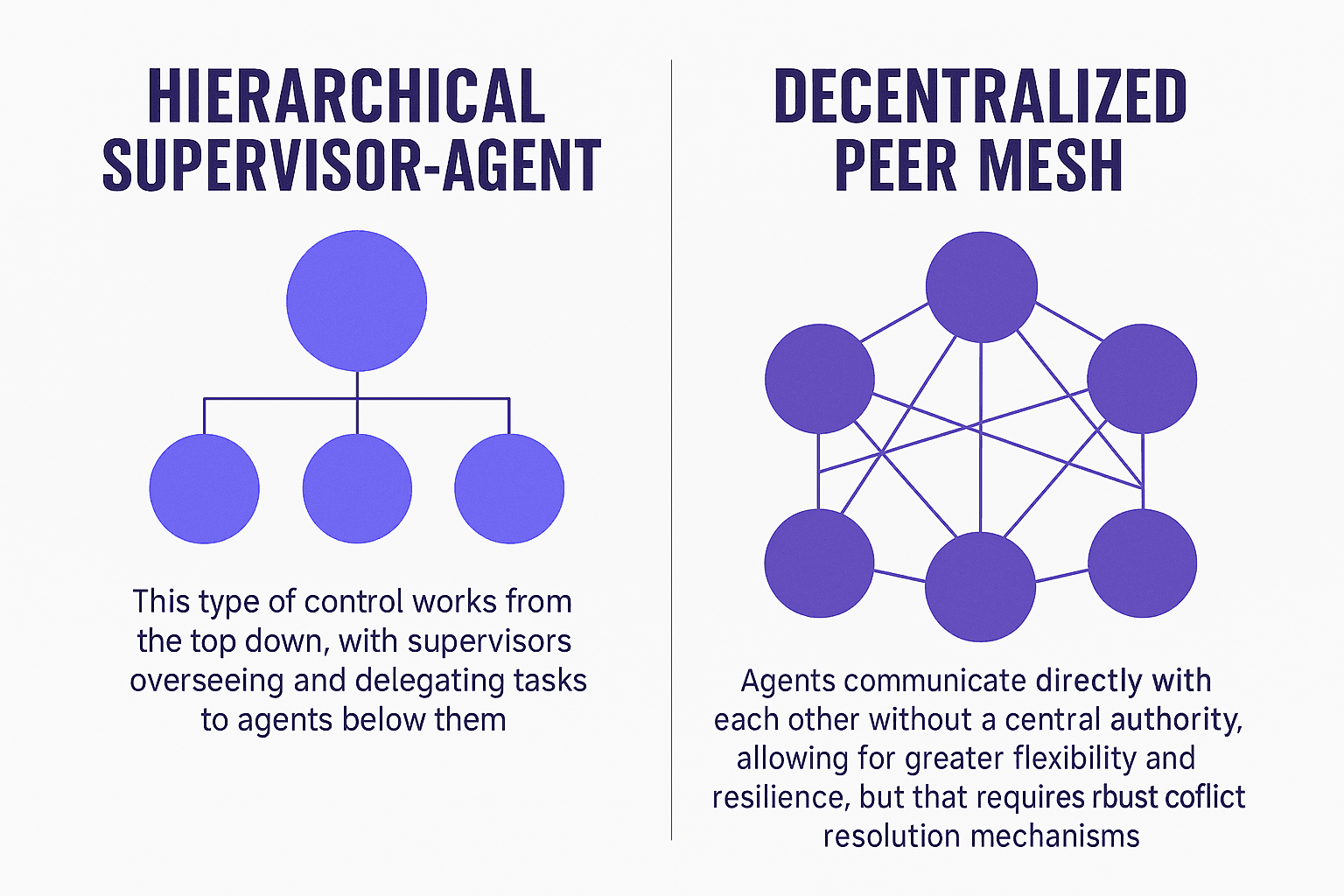

Figure 2: Coordination structure
Design Patterns
The functionality and reliability of MAS are improved by the implementation of effective design patterns:
Maker-Checker Validation: Ensures accuracy and compliance by separating the task execution (maker) and validation (checker) responsibilities among agents.
Pipeline Pattern: This sets up agents in a way that each does a certain processing step, which makes it easier for data to move and be processed.
Aggregator Pattern: Gathers info from several users and puts it all together so that it can be analyzed or used to make decisions.
Mediator Pattern: Provides an intermediary agent to improve interactions between other agents, which reduces direct dependencies and promotes modularity.
Using feedback loops lets agents:
Dynamic adaptation: Adjust behavior in response to environmental changes or performance metrics.
Error Correction: Through ongoing monitoring and learning, identify and rectify errors.
These trends help to create flexible and strong MAS.
Technology
The implementation of Multi-Agent Systems (MAS) requires a strong technological foundation. Important components consist of AI and model infrastructure, messaging and orchestration platforms, persistent storage solutions, observability and monitoring tools, and security and governance frameworks.
AI and Model Infrastructure
An effective AI framework allows for the development and control of different models, including:
Large Language Models (LLMs): To manage complex language understanding and generation tasks.
Reinforcement Learning (RL) Agents: Develop optimal behaviors by engaging with their surroundings using reinforcement learning.
Neural-Symbolic Hybrids: It enhance interpretability by combining symbolic reasoning with neural networks.
Some of the most effective hosting options are:
Kubernetes: Ensures scalability and resilience by orchestrating containerized applications.
Serverless Computing: Automatically allocates resources, enabling developers to concentrate on their code.
Edge Deployment: Reduces latency and bandwidth consumption by processing data near its source.
These methods allow AI models to be deployed quickly and on a large scale.
Messaging and Orchestration Platform
MAS requires strong and coordination:
Kafka: Manages real-time data transmission with a high throughput.
RabbitMQ: Enables the efficient queuing and delivery of messages.
Azure Service Bus: Provides cloud-based messaging with advanced features such as topic-based publish-subscribe mechanisms.
Kubernetes Custom Resource Definitions (CRDs): Add to Kubernetes's features to create custom management solutions.
Apache Airflow: Schedules and monitors complicated processes in real time.
Choosing the right tools makes sure that agents can work together and complete tasks without any problems.
Persistent Storage Solutions
Maintaining the state of the agent and the shared knowledge of the agent requires persistent storage.
Pinecone: Designed to help similarity searches and is optimized for vector data.
Weaviate: It manages vectorized data and lets you look for it using natural language.
Elasticsearch: Stores and looks through huge amounts of organized and unstructured data.
RedisGraph: Provides high-performance querying capabilities through its in-memory graph database.
Neo4j: It provides a dependable graph database for data containing complex connections.
Data type, access patterns, and performance requirements are all factors that influence the selection of the appropriate storage solution.
Observability and Monitoring
The maintenance of system health and efficacy requires comprehensive monitoring:
OpenTelemetry Tracing: Gathers distributed traces to comprehend system behavior.
Distributed Logging: Centralizes the analysis of records from multiple agents.
Performance Dashboards: Enable real-time decision-making by visualizing metrics.
Using these tools makes sure that problems are found and fixed quickly.
Security and Governance
Robust security measures are required to protect MAS:
Zero-Trust Agent Authentication: Confirms the validity of each access request, irrespective of its source.
Encrypted Communication Channels: Ensure the security of data during transmission between agents.
Audit Trails: Maintain detailed records of agent activities to ensure accountability and compliance.
These actions help keep the system's integrity and dependability.
The creation and use of efficient, scalable, and safe Multi-Agent Systems are made easier by combining these technological parts, which works well.
How Future AGI can help?
Future AGI provides a comprehensive platform that is intended to improve the administration of AI data and the evaluation of AI models, with the objective of achieving 99% accuracy in AI applications across a variety of domains. Its main characteristics consist of sophisticated hyperparameter configuration, centralized multi-model testing, and automated optimization. The Future AGI platform enables agents to collaborate efficiently by offering tools for prompt evaluation and model comparisons in the context of designing multi-agent systems. This ensures that every agent runs with great dependability and precision, which enhances the performance of the overall system.
Future AGI provides AI teams an observability framework that lets them track model behavior, find outliers, and use evaluation tools to make AI more accurate, reliable, and efficient.
Best Frameworks To Build Multi-Agent AI Applications
Developers can build multi-agent AI systems using multiple frameworks, each with unique features for collaborative AI agents.
Agno
Agno is an open-source Python framework that is lightweight and specifically designed for the development of multimodal AI agents. It helps agents to handle text, graphics, audio, and video inputs by supporting many large language models (LLMs) from suppliers like OpenAI, Anthropic, and Cohere. It is appropriate for the development of scalable AI systems due to the design of Agno, which prioritizes minimalism and performance.
LangGraph
LangGraph is a stateful orchestration framework that improves the management of agent workflows. Developers can design nodes (tasks or actions) and edges (information flow) to create complicated, multi-agent workflows. LangGraph integrates easily with LangChain to give agent orchestration more control and flexibility.
Open AI Swarm
Swarm is an experimental, open-source infrastructure developed by OpenAI with the objective of simplifying the orchestration of multiple AI agents. It focuses on lightweight coordination and implementation, using two primary abstractions: handoffs and agents. It enables agents to seamlessly transfer control to one another which helps in complex workflows. Swarm provides insights on ergonomic interfaces for handling multi-agent systems even at its experimental stage.
CrewAI
CrewAI is a Python framework that is open-source and enables the development and managing of collaborative AI agent teams. It lets agents adopt specialized roles, interact, and plan to reach certain goals. CrewAI can connect to many different LLMs and cloud platforms, which makes work easier in many different fields.
AutoGen
AutoGen is an open-source programming framework that was created by Microsoft to facilitate the development of multi-agent AI systems that are both scalable and efficient. It includes customizable and conversable agents that can integrate LLMs, tools, and human inputs through automated agent conversations. It works great for making predictable and dynamic agentic systems for business processes.
The selection of the appropriate framework is dependent upon the unique needs of your AI application, such as the complexity of the tasks, scalability, and integration capabilities.
Challenges and Best Practices
When designing and implementing Multi-Agent Systems (MAS), it is required to address a number of challenges to ensure compliance, reliability, and efficiency. The following sections list the main challenges and related best practices.
Scalability and Latency: Horizontal scaling by adding agents to distribute tasks effectively can handle rising workloads and low latency. Use load-balancing strategies to make sure that agents are assigned tasks evenly so that no agent becomes a bottleneck.
Reliability and Fault Tolerance: Increase system resilience by including circuit breakers to prevent cascade failures when an agent or service becomes unavailable. Retry techniques using exponential backoff can prevent transitory mistakes from causing long-term problems. Additionally, set up multiple agent groups to provide failover features that keep the system running even when an agent fails.
Consistency and Convergence: Depending on the needs of the application, weigh the trade-offs between eventual and strong consistency models. Ensure that agents converge toward a consistent system state over time by using conflict resolution strategies to manage discrepancies that arise from concurrent operations.
Hallucination and Drift Mitigation: Verification agents that cross-verify data and decisions made by other agents are deployed to prevent misinformation. Maintain accuracy by using maker-checker cycles, in which the output of one agent is verified by another. Track and audit agent decision-making via chain-of-thought traceability, which allows the finding and fixing of mistakes.
Ethical, Regulatory, and Compliance: Integrate bias detection systems to identify and mitigate unfair outcomes to ensure ethical and regulatory compliance. Use "explainability" features to make agent choices clear, which will build trust and hold them accountable. Maintain detailed audit records of agent interactions and choices to ensure legal and ethical compliance.
You can create scalable, dependable, consistent, accurate, ethical and regulatory-compliant Multi-Agent Systems by tackling these challenges using best practices.
Conclusion
Multi-agent systems (MAS) enable specialized agents to collaborate on difficult tasks, exceeding single-agent techniques, and decentralizing intelligence. Production-reliable MAS implementation requires strong communication protocols, resilient coordination patterns, and long-term memory structures.
Current research is concentrated on the improvement of MAS by incorporating continuous learning capabilities, and advanced coordination mechanisms such as AgentCoord. MAS is also being used in more areas because researchers are looking into collaborative learning and edge computing.
Integrating AGI into MAS requires strict safety, alignment, and governance frameworks to deploy more autonomous systems ethically and scalable. We need to keep working together across fields, have clear review criteria, and make sure that global policies are all the same for MAS to reach their full potential as they become an important part of mission-critical infrastructure.
