Introduction
Agentic RAG systems allow LLMs to do multi-step retrieval and reasoning with minimal human input. To the developers out there: how would you approach challenging tasks using agentic RAG?
Retrieval-augmented generation (RAG) connects an external knowledge base to a generative model such that it can include relevant information at query time. These systems reduce hallucinations by fetching documents from vector stores or search indexes and feeding them as context to an LLM, thus increasing accuracy. RAG makes models exact on niche subjects without retraining by augmenting rather than fine-tuning.
Rise of Agentic Workflows in LLM Applications in 2025
Agentic systems give LLMs the ability to plan, select tools, and iterate on tasks instead of only reacting to prompts. In 2025, frameworks like LangGraph will enable LLMs to automatically generate ideal coding, research, and client support processes. These agentic pipelines can coordinate API calls or break down research questions, so managing multi-step reasoning without human involvement.
Use Cases
Smarter Chatbots: Agents evaluate the need of more information and dynamically change retrieval techniques for simpler and accurate interactions, so improving chatbots.
Research Agents: Self-sufficient systems that create hypotheses, gather data from many sources, and quickly combine data are research agents.
Domain-Specific Copilots: Customized assistants in fields including law, healthcare, or finance who choose the most appropriate knowledge sources and confirm acquired information before offering users advice.
We will explore why agentic RAG matters in 2025, compare it with conventional RAG, look into agentic workflow patterns with examples, and map out reasonable implementation strategies.
What Is Agentic RAG?
RAG allows an LLM to retrieve significant context during query time without the need of retraining the model by connecting it to an external knowledge base.
Agentic RAG improves autonomy by letting AI agents choose when and how to access data instead of adhering to a set process. To help the agent to break down difficult goals into simpler actions, it combines a sequence of reasoning steps including retrieving, evaluating, and improving. The agent is able to evaluate the retrieved data against the objective and iterate until the answer satisfies quality tests through the use of feedback loops.
Agentic RAG plans for purpose-driven searches limit the search area and retrieve more targeted data. Iterative retrieval processes diminish hallucinations and enhance response accuracy, since the agent can recognize weak or irrelevant portions and re-query when necessary.
Agentic RAG is evident in copilots that draft and enhance long-form responses, compliance bots that autonomously check policy citations, and research agents that iteratively refine queries.
Core Components of an Agentic RAG System
An agentic RAG system is made up of five main parts that work together to allow autonomous, iterative retrieval and reasoning.
4.1 LLM Backbone
The RAG pipeline's LLM backbone drives generation and reasoning, with OpenAI's GPT series, Anthropic's Claude, and Mistral offering different capabilities and context lengths.
Model size, inference cost, context window, and fine-tuning capabilities determine the choice of a backbone; for instance, Mistral 7B maximizes performance and efficiency while Claude 3 offers a 200 K-token window.
4.2 Retriever
Retriever indexes and searches vector embeddings kept in databases including Pinecone, Weaviate, FAISS, or ClickHouse to quickly find relevant documents.
It uses fresh user inputs into the current vector space to obtain top-k results to improve the LLM with domain-specific information.
4.3 Memory / Context Tracking
Memory modules monitor short-term context during a session and long-term context between sessions, generally using in-context learning or external storage in vector databases.
The method maintains coherence and enhances personalization in extended conversations by retaining prior interactions or summary embeddings.
4.4 Tool Use / Agents
Agentic RAG includes tools or plugins—such as search APIs, code interpreters, or bespoke functions enabling the model to access external services as required.
Agents manage multi-step processes, selecting tools to use depending on user objectives and feedback from intermediate results.
4.5 Guardrails
Safety and compliance are provided by guardrails, which watch over inputs and outputs using rule-based filters, reinforcement learning limits, or external checks to stop activity that is harmful or not in line with what should be done.
You can use tools and systems like Future AGI or NVIDIA NeMo Guardrails to check for malicious code execution, data breaches, or bias in real time.
Figure 1: Agentic RAG System Components
Designing the RAG Pipeline for Agentic Behavior
Agentic RAG pipelines integrate autonomous decision-making with conventional RAG, creating a dynamic cycle of retrieval, reasoning, and action. This approach enables agents to choose when to get data, how to optimize searches, and which tools to use, all while maintaining context and managing extensive inputs. We'll break down the main steps and show you how they fit together below.
5.1 How Agents Interact with Retrieval and Tools
Agents first break out the user's goal and choose, depending on that goal, whether to call the retriever or an external tool (such as a search API or code executor).
After that, they score relevance or correctness for retrieved results or tool outputs and feed that evaluation back into their decision logic for the next phase.
5.2 Using Chain-of-Thought Prompting + Memory to Refine Queries
Agents make a chain-of-thought prompt that shows the next steps in their thinking, like making terms clearer or separating questions with more than one part. This helps the users ask more detailed questions.
By storing reasoning patterns and previous searches in short-term memory, they are able to rewrite or deconstruct new searches to make retrieval more accurate.
5.3 Handling Long Documents and Query Rewriting
Agents split long documents into reasonable chunks, retrieving and summarizing each one before aggregating summaries into a solid response.
They disambiguate user intentions, improve keyword selection, or break out difficult inquiries into simpler sub-queries using query rewriting strategies including RQ-RAG.

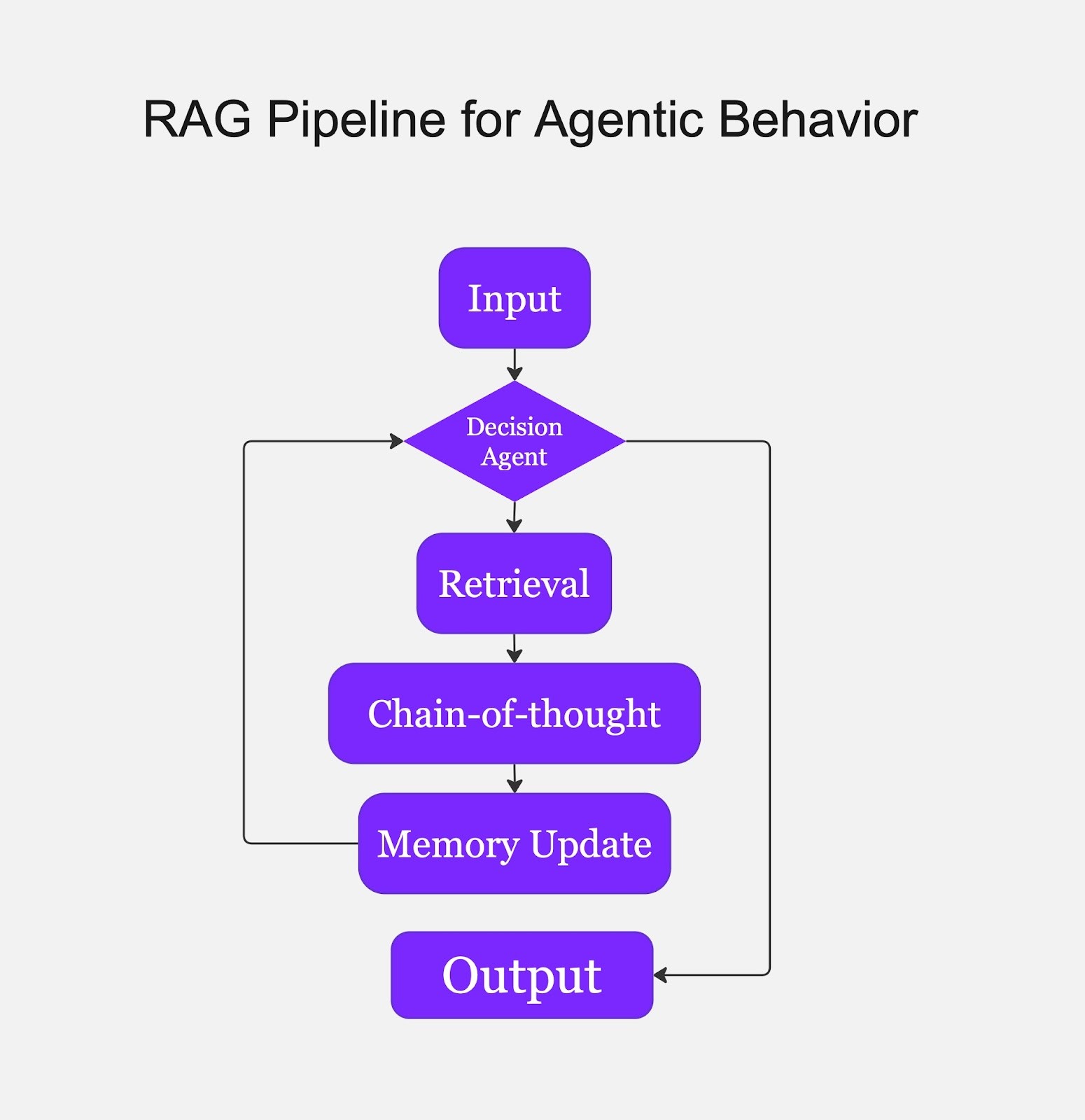

The agent decision block triggers retrieval or tool use, links to chain-of-thought reasoning and memory updates, loops back for additional refinement, and finally produces the user-facing output in a step-by-step architectural diagram below.
Figure 2: RAG Pipeline for Agentic Behavior
Implementing an Agentic RAG System: Hands-On Developer Guide
Starting with your data and vector store, then choosing a suitable framework to build on, then coding a loop tying retrieval to reasoning and integrating feedback for ongoing improvement using an agentic RAG system.
6.1 Setting up your data source and vector index
Start by loading documents or embeddings from your source—such as CSVs, databases, or web scrapes—into a document store or straight embeddings using a model like SentenceTransformers.
Create a vector index (Pinecone, FAISS, Weaviate, ClickHouse) then add embeddings to enable demand-based similarity searches.
6.2 Choosing a framework
Choose a framework that fits your situation. While LlamaIndex focuses on flexible data intake and indexing, LangChain shines at chaining LLM calls and integrating tools.
Haystack provides built-in pipelines, retrievers, and agents for enterprise use; new platforms like Future AGI provide experimental support for agentic workflows.
6.3 Creating the retrieval + reasoning loop
Create a loop in which the agent chooses: "Should I generate an answer or fetch new context?" by asking the LLM using chain-of-thought reasoning directions.
Every iteration gathers important chunks, evaluates them, and improves the following search, allowing the system to zero in on exact responses free from human intervention.
6.4 Incorporating feedback (user or self-reflective agents)
Record user ratings or conflicts using attach feedback handlers, then feed this information back into memory or retriever tuning for next searches.
Alternatively, create self-reflective agents that evaluate their own outputs against pre-defined quality checks and, in low confidence, set off tool calls or re-evaluation.
6.5 Agentic AI development Code Snippet
from langchain import OpenAI, VectorDBQA, PromptTemplate |
Best Practices for Smarter Information Retrieval
7.1 How to reduce hallucinations
RAG grounds the model to cite retrieved documents instead of creating responses, so guiding over actual evidence instead of speculating.
Use confidence thresholds and reference-free detectors such as TLM or LRP4RAG to highlight uncertain outputs and initiate re-retrieval as needed.
7.2 Strategies to improve recall/precision
Increase recall by using dense vector search or hybrid sparse-dense retrieval techniques capturing semantic relevance and by increasing the number of retrieved passages.
Using post-retrieval reranking, filters on metadata or similarity scores, and tuning top-k and distance metrics in your vector store, sharpen precision.
7.3 When to use multi-hop or chained queries
When a single search fails to address your question, use multi-hop searches; break out difficult work into sub-queries across multiple documents to compile every bit of evidence.
Guide iterative retrieval with chain-of- thought questions: each step improves the query depending on past performance until you build a whole, grounded response.
7.4 Caching and context management
Use prior retrievals and precomputed key-value caches using approximation caching methods like Proximity or Cache-Craft to reduce expensive vector searches.
Differentiate between short-term session memory and long-term caches: remove outdated entries, maintain current interactions, and preload context for more fluid follow-up searches.
7.5 Optimizing latency for real-time systems
Restrict top-k to necessary parameters, parallelize retrieval with creation to reduce end-to-end latency, and use GPU-optimized inference engines such as TensorRT-LLM.
For responsive, real-time applications, reduce time-to-first-token to under 100 ms and integrate block-attention or approximate cache layers to optimize computation and vector retrieval.
Common Pitfalls and How to Avoid Them
8.1 Overfitting Retrieval to Poor Queries
If searches lack specificity or contain confusing phrases, your retriever will expose irrelevant documents, anchoring the system on low-value context.
Tuning retrieval too narrowly around these problematic queries causes the agent to constantly collect the same useless texts, rather than expanding its search to locate better responses.
8.2 Latency from Overly Complex Agents
Agents calling many resources in series—that is, different retrievers, analyzers, and validators may cause significant delays to response times.
If at all possible, batching retrieval calls, simplifying decision logic, or running tool stages in parallel will help to lower latency.
8.3 Misalignment without Guardrails
Agents might follow poorly defined prompts into dangerous or non-compliant outputs without guardrails, deviating from human intent.
Run runtime filters, policy-based checks, and logging audits to make sure agent actions remain within specified safety and ethical limits.
8.4 Vector Search Quality and Document Chunking
Naive chunking can split sentences or ignore important background, so neglecting important knowledge and generating fragmented responses from the model.
Test several chunk sizes, use semantic-aware chunking techniques, and check embedding quality to keep good recall and accuracy in your vector searches.
Future Trends: Where Agentic RAG Is Headed
Autonomous Research Agents: Agents will independently draft, submit, and review scientific reports by looping retrieval, analysis, and writing—Frameworks like AgentRxiv highlight labs sharing and improving on each other's AI-generated preprints.
RAG + Fine-Tuning + RLHF: Combining RAG with incremental fine-tuning and reinforcement learning from human feedback (RLHF) will allow agents to adapt to new policies, as shown in compliance agents that improve their legal citations following user corrections.
Multi-Agent Collaboration: The Model Context Protocol (MCP) lets agents from different vendors share tasks, one obtains data, another analyzes metrics, and a third prepares reports creating an agile multi-agent workflow.
Enterprise-Ready Agentic Systems: Regulated businesses will seek agents with guardrails, audit logs, and compliance checks; cybersecurity systems will track agent activity in real time with governance modules.
Conclusion
This guide explained why agentic RAG matters driving autonomous agents now supported by industry-wide standards like MCP backed by Microsoft and Anthropic. We looked into fundamental components from LLM backbones to guardrails and found how design patterns generate iterative, goal-driven pipelines. Rapidly prototype smart RAG agents by using LangChain's SDK and Future AGI's SDK in hand-on coding. We focused on best practices to reduce hallucinations, improve memory, and avoid common errors that either slow down or misalign your agents. Install Future AGI using pip install future-agi to start experimenting with its SDK. Visit Future AGI to view live examples and comprehensive guides; check the GitHub repository for code samples and subscribe for updates or contact their team for demos and support.
